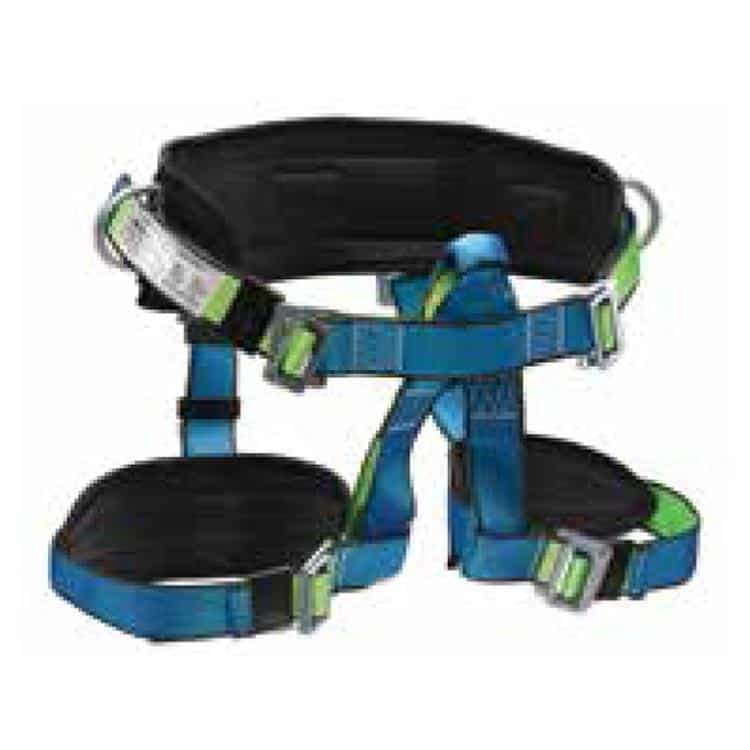

Udyogi Work Positioning Waist Belt With Thigh Strap, Ventral Loop WP 02

STANDARD : CONFORMING TO EN 358:2018
INDUSTRY
Wind
Telecom
Power
Transmission
IDEAL APPLICATIONS
Work Positioning
Waist Belt
SPECIAL FEATURES
LIGHT WEIGHT FALL RESTRAINT
WORK POSITIONING
MECHANICAL CHARACTERISTICS
Material: Virgin polyester webbing and Two Lateral D- rings of
forged alloy steel
Stitching: High-strength polyester sewing thread CNC stitching
TEST COMPLIANCE - STATIC STRENGTH
When tested in accordance with test cylinder a work positioning
waist belt shall sustain a force of 15 kN without releasing the
cylinder.
TEST COMPLIANCE - DYNAMIC STRENGTH
When tested with 100 kg torso dummy, shall be held clear of the
ground by the work positioning waist belt during the first impact.
FEATURES
Built with Two lateral D-rings and one ventral positioning D-ring and
size adjustment straps at waist and thighs.
H-shaped thigh strap holds the positioning belt tight & fix makes it
suitable for self-rescue and ascending.
Easy work positioning waist belt and sit harness Ring provided for
tool holder Thermoform comfort back and thigh support
Weight: 1.370 kgs approx.
MARKINGS
Manufacturers Logo
Model No., Batch No., Serial No.
Year of Manufacture
Material
Approval & marking
Instruction Pictogram
STORAGE
Store the harness in a dry area
away from ultraviolet rays.
Do not store in direct / high heat or
sunlight as this may distort the
Colour.
Can be stored and transported in their
original cartons to avoid corrosion due to
atmospheric moisture, excessive heat or
cold.
CLEANING
Use Clean piece of cloth to wipe the dust
PACKING
10pieces per carton
