Udyogi Winch For Tripod 10 ,20, 30 , 50 metres

Used for raising or lowering of personnel into confined space

• Breaking Strength – 14 kN
• Safe working load limit 100 kg
• Available working length (Meter) : 10, 20 , 30 , 50
• Rope Material : Galvanized Steel
• Wire rope dia.: 4.8 mm

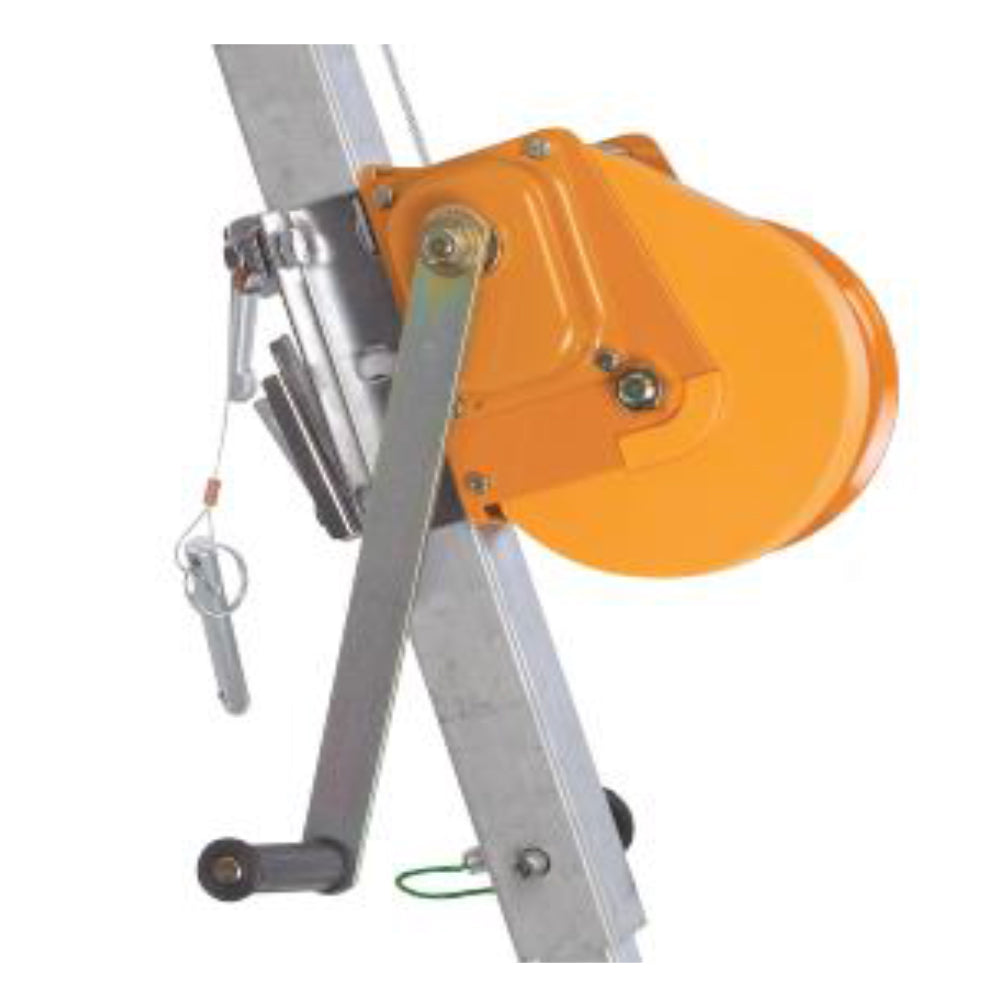

WINCH
Anchor
STANDARD : CONFORMS TO EN 1496 : 2017
INDUSTRY IDEAL APPLICATIONS
Municipal Corporation Anchorage
Oil & Gas
Confined space entry
Pharmaceutical, Cement
ANCHOR
MECHANICAL CHARACTERISTICS
FEATURES
To be used for raising or lowering of
personnel into confined space
Should be used with Udyogi Tripod
STORAGE
Can be stored and transported in their original kit bag/
cartons to avoid wear & tear due to atmospheric
moisture, excessive heat or cold
PACKING
1 pc per carton
PHYSICAL PARAMETERS
Wire construction : 7 X 19
Weight (Kgs) : 11.5, 12.4, 13.4, 18
Available working length (Meter) : 10, 20 , 30 , 50
MARKINGS
Manufacturers Logo, details & mailing address
Model No., Batch No., Serial No.
Year of Manufacture
Material
Approvals & CE
Housing: Mild steel with powder coated
Breaking Strength: 14 kN
Safe working load limit: 100 kg
Wire rope dia.: 4.8 mm
Rope Material : Galvanized Steel
