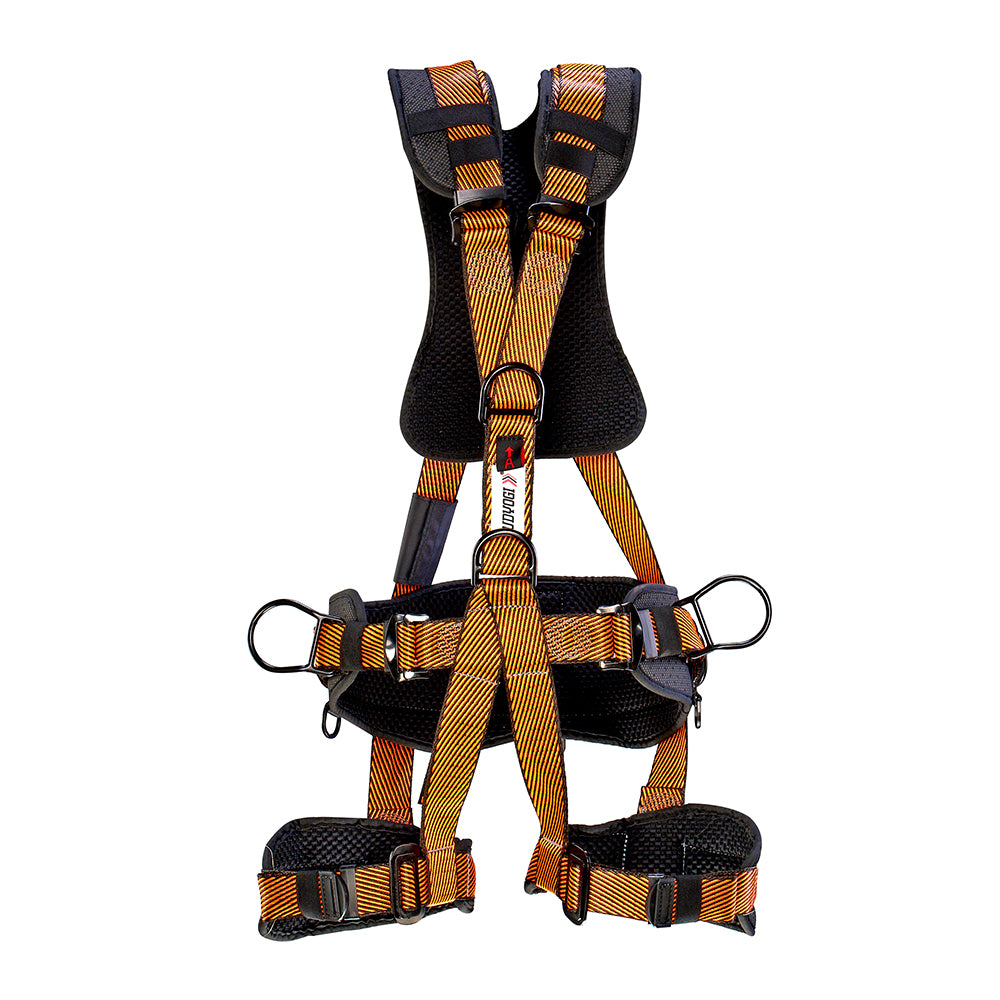

Udyogi Ultra 05 Multipurpose Safety Harness Full Body Safety Belt

• Multipurpose harness with 5 attachment points on the dorsal, sternal, lateral, and ventral points
• Waist pad with high-density vented EVA, breathable 3D mesh on both sides
• Ergonomic H-shaped design to prevent any discomfort at the groin even after a free fall
• Tool loops to attach rope access accessories and tool lanyards
• Fully adjustable harness with size adjustment straps at the shoulders, waist, and thighs

PADDED FULL BODY SAFETY HARNESS

ULTRA-05

Full Body Harness

STANDARD: CERTIFIED AS PER EN 361:2002, EN 813:2008, EN 358:2024

IS 3521(Part 1): 2021

Product Introduction:

 Udyogi full body harness is a safety harness that connects the worker to

The fall protection system anchored into the structure they are working

the user from injury or fatal incident.

 By donning the harness, the risk of injury resulting from a fall is

significantly diminished. The harness enables the user to secure

themselves to a stationary object, thereby ensuring that they will not

come into contact with the ground in the event of a fall.

on. It is designed to safeguard Provide freedom of movement for the wearer.

 Udyogi premium harnesses evenly distribute the energy of a fall

across the wearer's body to reduce the risk of serious injury. The

harnesses Provide support for the wearer's hips, legs, chest, shoulders,

and back Features:

 The harness comes with one dorsal D-ring, One Sternal D Ring on

chest for fall arrest, Two Lateral D-rings on waist for work

positioning and One Ventral D-ring at waist level for rope access.

 In built Fall Indicator to facilitate easy inspection in case a fall has

occurred ever.

 Fully adjustable and comfortable cushioned waist, thighs and back

padding

for comfort during long duration use.

 Y-shaped padding and quick adjustment on shoulder make it

comfortable, simple, fast for easy access and donning long working

hours.

 Comfortable and cushioned padding on waist for comfort during

long duration use.

Product Specifications:

Model : ULTRA-05

Webbing Material : AZO free dyed synthetic Polyester

Webbing Width : 44 +/-1 mm

Webbing Breaking Strength : 25 kN (Minimum)

Safe Working Load Capacity : 100 kg

Stitching Thread Material : High tenacity virgin multifilament polyester

Stitch Thread Colour : White

Metal Components : High strength aluminium component, light

weight. Free from any sharp edges.

Harness Colour Weight : Black and orange

: 1.7 kg Approx. (Only Harness)

Benefits:

 Protection from Falls: A safety

harness is an essential tool in

preventing the workers from fatal

accidents such as falling to the

ground from working at height in

workplaces.

 Reduce the risk of injuries: The

harnesses distribute wearers’

weight evenly, reducing the

pressure on their back, legs, and

feet, and can also help to prevent

falls.

 Improves stability: The harness's

straps can be adjusted to fit

securely and centered around the

body, which can help the wearers

maintain control of their

movements

 Prevents secondary injuries:

When worn correctly, the harness

can prevent secondary injuries

and enable quick rescues.

Applications:

 Fall Arrest: Fall arrest harnesses are designed for use in situations involving elevated heights, where workers

are exposed to hazards that may involve a free fall. These harnesses, which are a crucial component of personal

protective equipment (PPE), typically feature a back dorsal D-ring, which is a critical component of the harness's

safety design.

 Working at Height: Harnesses are used whilst working at heights, they are secured to an anchor point for

preventing falls from heights that can result in serious injuries and even fatalities, the safety harness is one of

the most effective ways to prevent them.

 Ladder climbing: A harness can be used for ladder climbing to reduce the risk of falling.

 Rope Access: The harness can be used in various Rope Access operation like Rescue, Maintenance and cleaning

etc.

 Work Position: A harness can be used for work positioning to hold a worker in place at elevated heights while

allowing them to work hands-free. A work positioning harness is a type of full body harness that has positioning

D-rings on the both side of waist to allow the worker to use both hands.

Safety Information:

 Energy absorbing lanyard should be used together with Full Body Harness as connecting subsystem in PFAS

as per latest IS standard.

 Users of fall-protection equipment should not exceed 100 kg of total mass (including tools and equipment).

Usage Instruction:

 Inspection: Harnesses should be inspected in every 6 months’ interval. Damaged or defective harnesses

should be discarded from service immediately after inspection.
