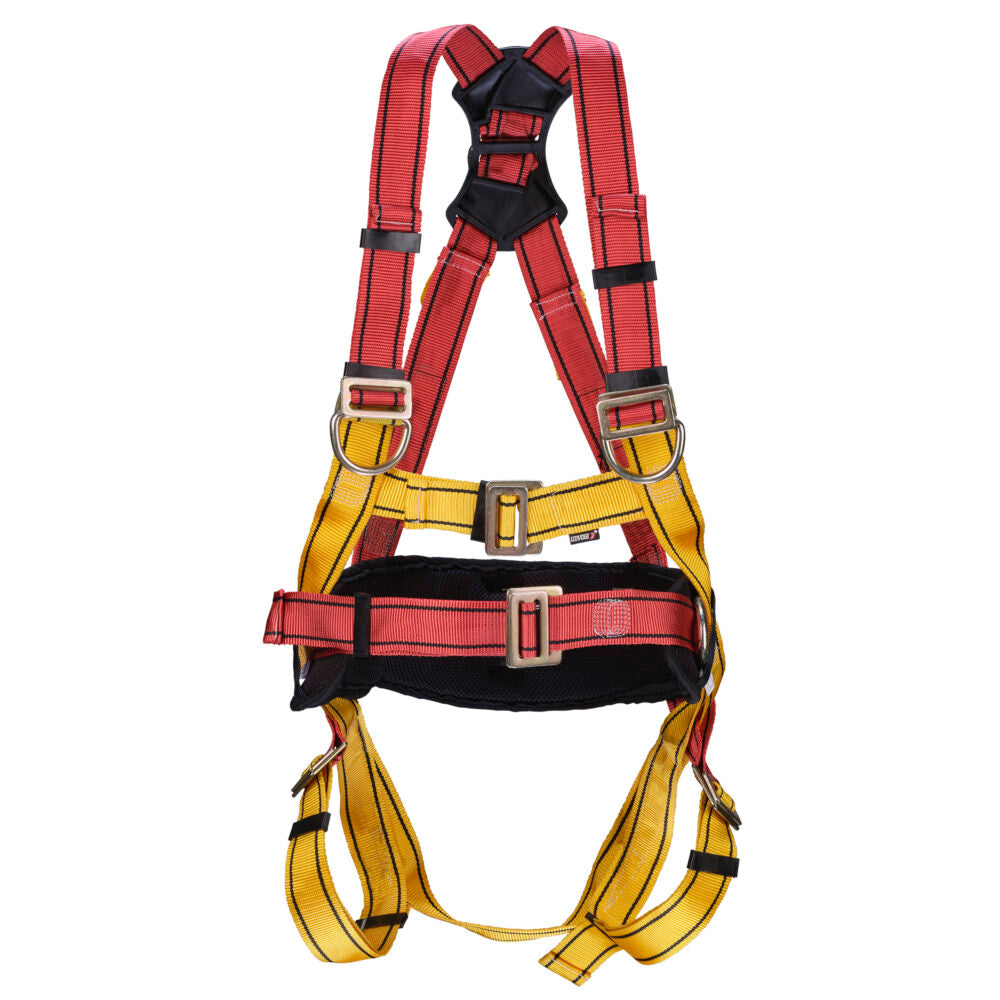

Udyogi UB 104 Safety Sit Harness Safety Belt without Lanyard

STANDARD EN 361:2002, EN 358:2018, IS 3521(Part 1): 2021

• • One dorsal D-ring, 2 chest attachment D-rings and Two lateral D-rings for Work Positioning
  • Size Adjustment straps on shoulders, chest, waist and thighs
  • Integrated cushioned waist padding for additional comfort

UB104

Full Body Harness

STANDARD: CERTIFIED AS PER EN 361:2002, EN 358:2018, EN 354:2010, EN 355:2002, EN 362:2004

IS 3521(Part 1): 2021, IS 3521(Part 2): 2021, IS 3521(Part 5): 2021

Product Introduction:

 Udyogi full body harness is a safety harness that connects the worker to

The fall protection system anchored into the structure they are working

on. It is designed to safeguard the user from injury or fatal incident. The

harness is usually attached with rope lanyard like braided or polyamide.

 The safety harness is securely attached to a shock-absorbing lanyard,

which serves to regulate deceleration and prevent potentially severe

G-force injuries upon reaching the end of the rope.

 By donning the harness, the risk of injury resulting from a fall is

significantly diminished. The harness enables the user to secure

themselves to a stationary object, thereby ensuring that they will not

come into contact with the ground in the event of a fall.

Features:

 The harness comes with one dorsal D-ring, Two Sternal D Rings on

chest and Two Lateral D-rings on waist for work positioning.

 In built Fall Indicator to facilitate easy inspection in case a fall has

occurred ever.

 Fully adjustable straps only at shoulders, chest, waist and thighs.

 Available with integrated work positioning waist pad.

 Built in dual colour webbing for easy orientation.

 Ideally positioned sit-strap for extended comfort.

Benefits:

Product Specifications:

Model : UB104

Webbing Material : Polyester

Webbing Width : 44 +/-1 mm

Webbing Breaking Strength : 23 kN

Safe Working Load Capacity : 100 kg

Stitching Thread Material : High tenacity virgin multifilament polyester

Stitch Thread Colour : White

Metal Components : Shot Blasted Finish, High Strength

Alloy Steel with Zinc Plated thickness and

free from sharp edges

Harness Colour : Yellow and Red

Weight : 1.55 kg Approx.

 Protection from Falls: A safety

harness is an essential tool in

preventing the workers from fatal

accidents such as falling to the

ground from working at height in

workplaces.

 Reduce the risk of injuries: The

harnesses distribute wearers’

weight evenly, reducing the

pressure on their back, legs, and

feet, and can also help to prevent

falls.

Applications:

 Fall Arrest: Fall arrest harnesses are designed for use in situations involving elevated heights, where workers

are exposed to hazards that may involve a free fall. These harnesses, which are a crucial component of personal

protective equipment (PPE), typically feature a back dorsal D-ring, which is a critical component of the harness's

safety design.

 Working at Height: Harnesses are used whilst working at heights, they are secured to an anchor point for

preventing falls from heights that can result in serious injuries and even fatalities, the safety harness is one of

the most effective ways to prevent them.

 Ladder climbing: A harness can be used for ladder climbing to reduce the risk of falling.

Industries:

as follows.

maintaining a safe and efficient working environment in any manufacturing, construction, utility related industries are

Safety Information:

 Energy absorbing lanyard should be used together with Full Body Harness as connecting subsystem in PFAS

as per latest IS standard.

 Users of fall-protection equipment should not exceed 100 kg of total mass (including tools and equipment).

Usage Instruction:

 Inspection: Harnesses should be inspected in every 6 months’ interval. Damaged or defective harnesses

should be discarded from service immediately after inspection.

Storage:

 Always harness should be stored in a dry area away from ultra violet rays. It Should not store in direct /

high heat or sunlight as this may distort the colour. The sling can be stored and transported in their original

cartons to avoid corrosion due to atmospheric moisture, excessive heat or cold.
