Udyogi UB 102 Safety Harness Safety Belt with Shock Absorber

Udyogi UB 102 Safety Harness Safety Belt with Shock Absorber

Rs. 1,200.00
Rs. 1,200.00
Sale Sold out
Shipping calculated at checkout.

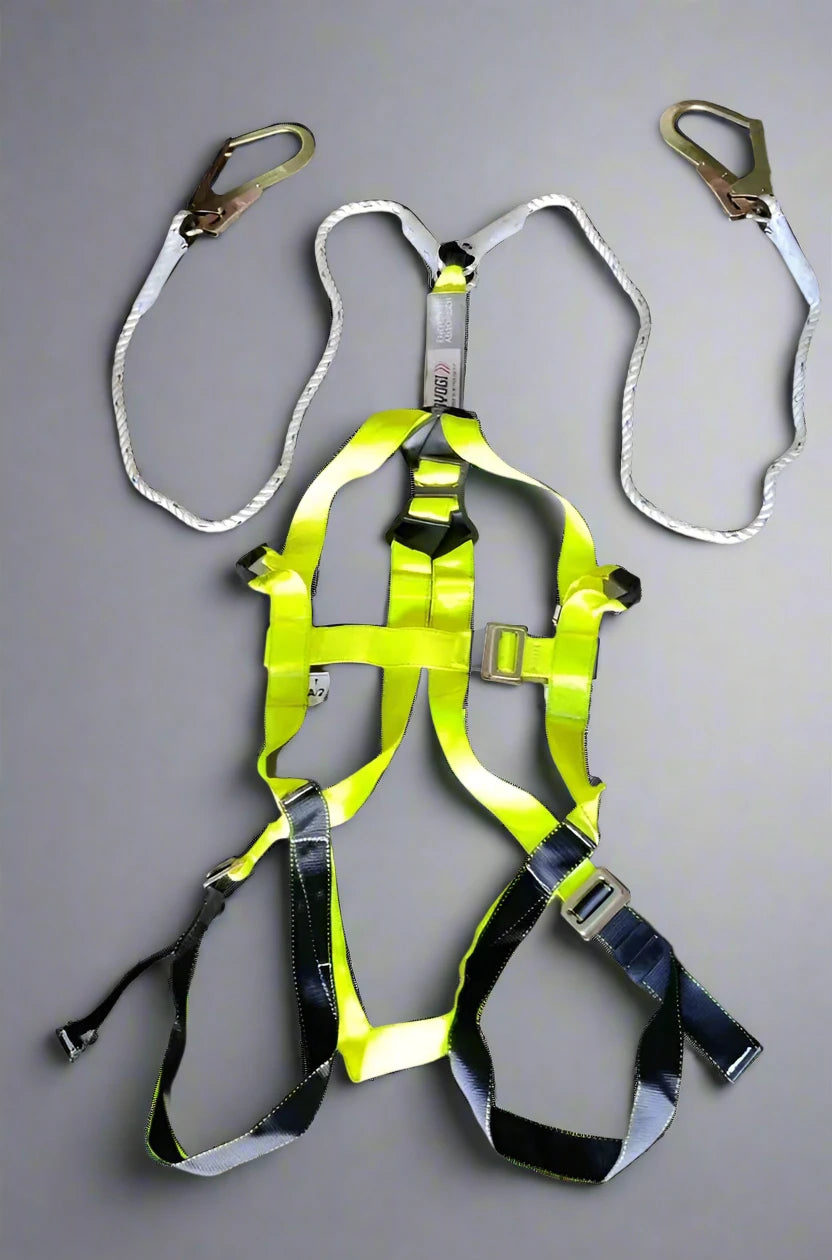

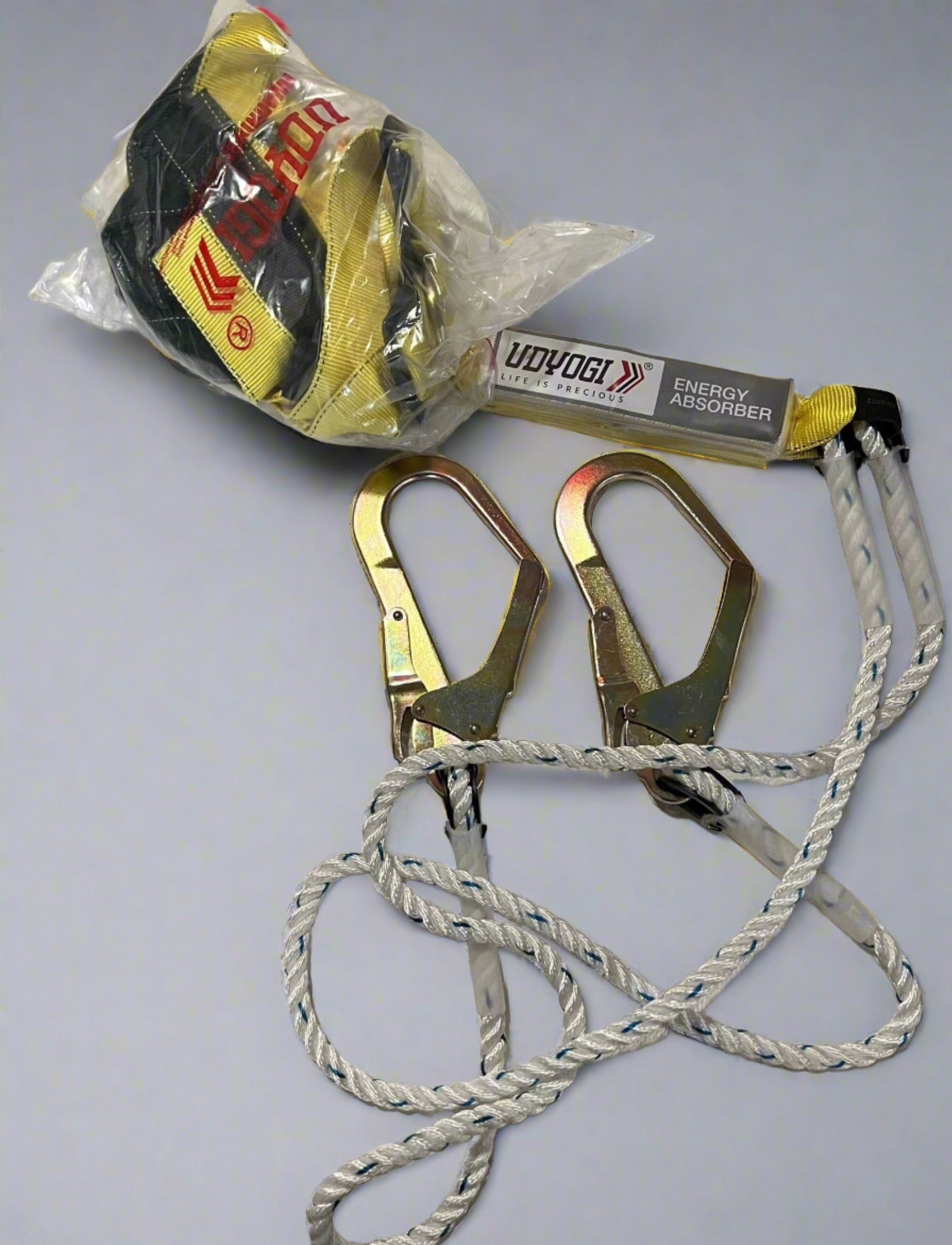

UB 102 Double Polyamide rope with Shock/Energy Absorber & SH 60 Scaffolding Hook

STANDARD: CONFORMING TO EN 361:2002, IS 3521(Part 1): 2021

  • Webbing material – AZO free dyes synthetic virgin polyester
  • Breaking strength – 23 kN (Minimum)
  • Fall arrest attachment points – Dorsal & Sternal
  • It has two shoulder straps, a chest attachment strap, and two leg straps.
  • It has one dorsal attachment D-ring, two chest attachment loops & full adjustable chest strap, thigh straps

UB102SHAP60

UB102

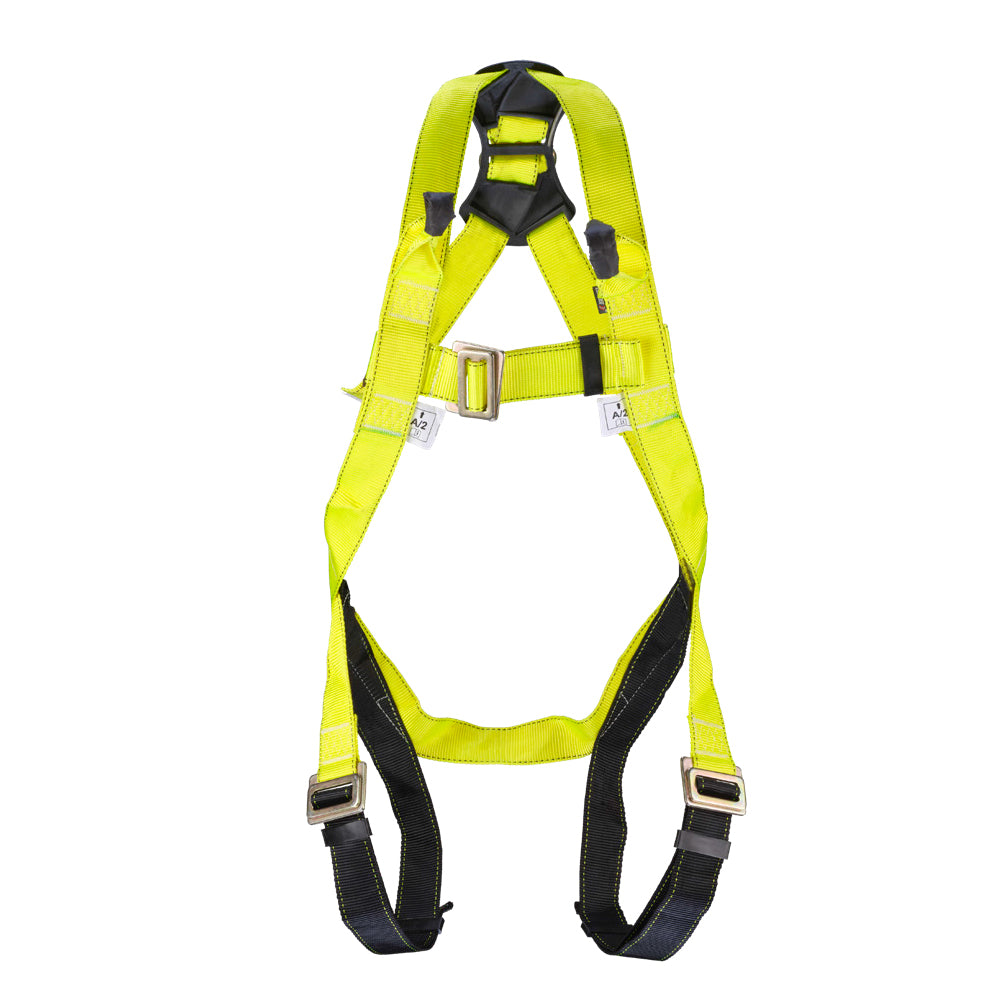

Full Body Harness

STANDARD: CONFORMING TO EN 361:2002, IS 3521(Part 1): 2021


INDUSTRY IDEAL APPLICATIONS

Construction

Working at Height

Maintenance

Ladder Climbing

-

Fall Arrest
page1image1080288160SPECIAL FEATURESFALL ARREST

CLIMBING

RESTRAINT

CLASS-A

CLASS-L

WEBBING MATERIAL

Polyester 44 +/- 1 mm

WEBBING BREAKING STRENGTH

23 kN

STITCH THREADS MATERIAL

High tenacity virgin multifilament polyester

STITCH THREADS COLOUR

White

WEBBING WIDTH

METAL COMPONENTS HARNESS COLOUR

High quality alloy steel, zinc plated, free Yellow & Black 1 kg (approx.) Without lanyard from any sharp edges.

WEIGHT

TEST COMPLIANCE - Static Strength

Tested at each attachment element with a force of 15 KN applied for 3 min

TEST COMPLIANCE - Dynamic Strength When tested at each Fall Arrest Attachment element with a torso dummy of 100 Kg mass, the full body harness withstands drop tests with a free fall distance of 4 m.

FEATURES

One dorsal D-ring for fall arrest.

Two textile chest attachment loop for fall arrest.

Easy to put on and off during emergency.

Ideally positioned sit-strap for extended comfort.

Built-in dual colour webbing for easy orientation.

Fall Indicator: A fall indicator system with tag provided to

ensure easy notice when a fall occurred & subsequent discarding of the PPE. Fall indicator tag located below the back plate to the back side of both the shoulder straps.

MARKINGS

Manufacturers Logo, details & mailing address

Model No.

Batch No. & Serial No.

Year of Manufacture

Material

Approval & IS marking

Instruction Pictogram

STORAGE

Store the harness in a dry area away from ultraviolet rays.

Do not store in direct/ high heat or sunlight as this may distort the colour.

Can be stored and transported in their original carton to avoid corrosion due to atmospheric moisture, excessive heat or cold.

CLEANING

Use Clean piece of cloth to wipe the dust.

PACKING

10 pieces per carton.
