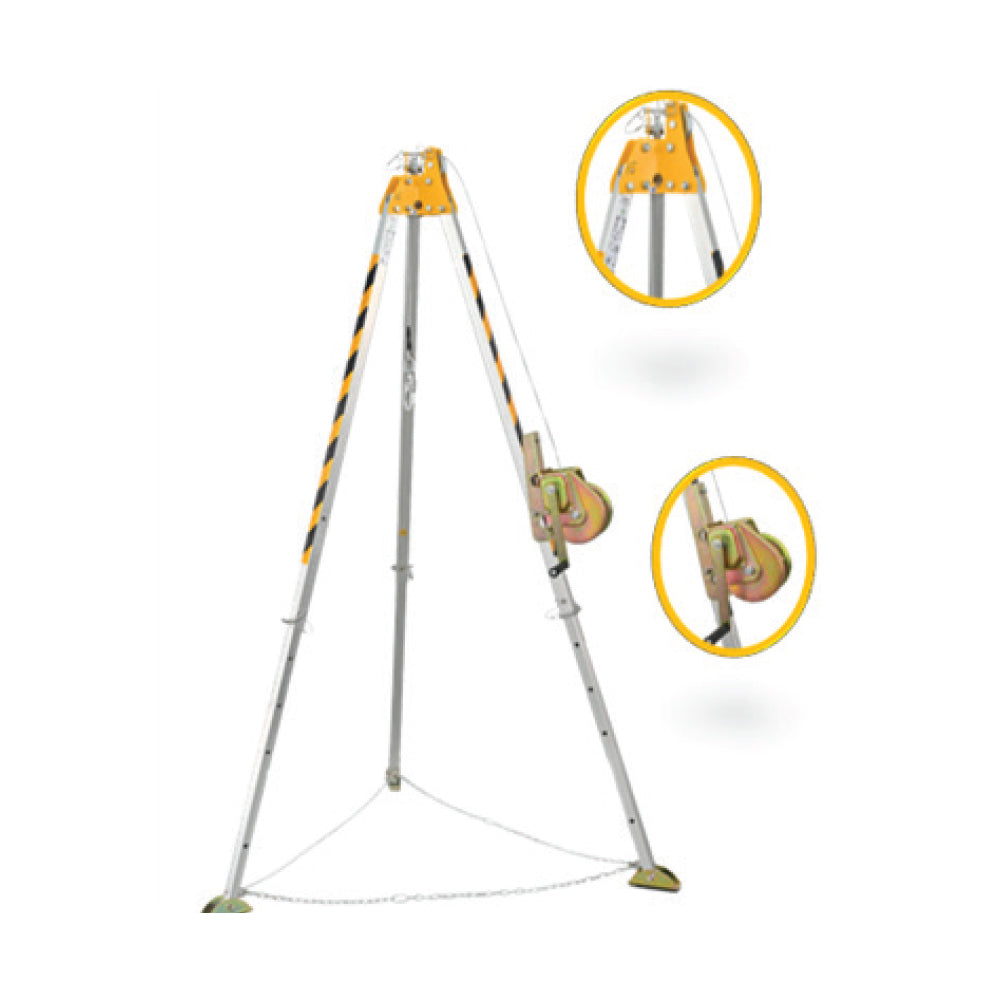

Udyogi Tripod Edge 212 Confined Space
Udyogi Tripod Edge 212 Confined Space
Couldn't load pickup availability
STANDARD: EN795:2012 (TYPE B),CEN/TS 16415:2013
Quick Info
- Safe working load limit: 150 kg
- Maximum working height: 2100 mm
- Adjustable Height: From 1400 mm to 2100 mm
- Wheelbase Footprint Ø: 1000 mm to 1500 mm
- Maximum user: 2 person
- Net Weight: 17.0 kg (approx.) without winch
EDGE-212
(TRIPOD)
STANDARD : EN795:2012 (TYPE B), CEN/TS 16415:2013
INDUSTRY IDEAL APPLICATIONS
Municipal Corporation
Oil & Gas
Anchorage
Confined space vertical entry
Pharmaceutical
SPECIAL FEATURES
ANCHOR
MECHANICAL CHARACTERISTICS
High strength steel and alunimium alloy
Strength: 15 kN (Minimum)
|
PHYSICAL PARAMETERS |
|
Maximum working height : 2100 mm |
|
Adjustable Height : From 1400 mm to 2100 mm |
|
Wheelbase Footprint Ø: 1000 mm to 1500 mm |
Safe working load limit: 150 kg
Maximum user: 2 person
FEATURES
With two mounted pulleys at the head of the Tripod in the extension of the main leg for passing a cable
|
MARKINGS |
|
Manufacturers Logo, details & mailing address |
|
Model No., Batch No., Serial No. |
|
Year of Manufacture |
|
Approvals & CE |
Having two holes as attachment points and can be used simultaneously.
Tripod head : IS 2062 Steel, Golden yellow powder coated and Tripod leg: Aluminium
Steel support-shoes provided with rubber sole to increase friction and impart more stability
|
STORAGE |
|
Can be stored and transported in their original kit bag/ cartons to avoid wear & tear due to atmospheric moisture, excessive heat or cold. |
Strength of anchorage point greater than 12 kN
Every Tripod is provided with integrated fixture for attaching UDYOGI Winch
Every Tripod is provided with Kit Bag
|
PACKING |
|
1 pc per carton |
Net Weight : 17 kg (approx.) without winch
Light Weight, Durable and Easy to carry and install
Winch Sold Separately
