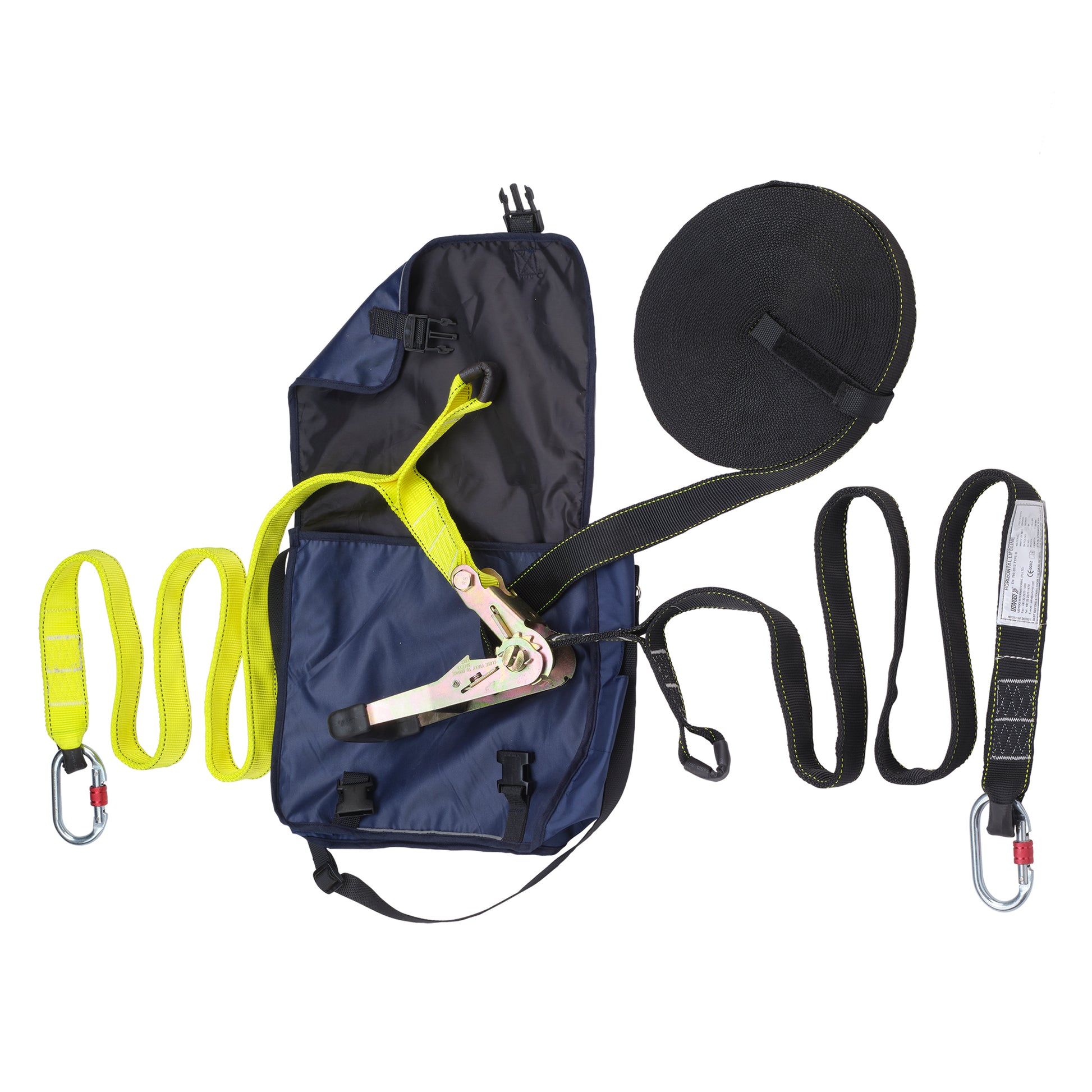

Udyogi Temporary Anchorage & Lifeline HLL 20

HLL 10 & 20
Temporary Anchorage & Lifeline
STANDARD : EN 795:2012 Class B/C

FEATURES
Anchor device for temporary horizontal fixation
Webbing and termination loop with 308 connectors
(Tensile strength 25 kN)
Equipped with tie-off adopter straps
Equipped with a ratchet tensioner for quick and
easy tensioning of the lileline betweek two supportANCHOR
MARKINGS
Manufacturers Logo, details & mailing address
Model No., Batch No., Serial No.
Year of Manufacturing
Material
Approvals, CE & IS marking
Store the anchorage system in a dry area away
from ultraviolet rays.
Can be stored and transported in their original
cartons to avoid wear & tear due to atmospheric
moisture, excessive heat or cold.

PACKING
4 pieces per carton
Working at Height
Anchorage
IDEAL APPLICATIONS
Construction
INDUSTRY
PRODUCT VARIANTS
HLL 20 5m (Minimum span) 20m (Maximum span)
HLL 10 5m (Minimum span) 10m (Maximum span)
PHYSICAL PARAMETERS
Material Polyester Polyester
Width 44 mm ± 1 mm 44 mm ± 1 mm
Lifeline straps Tie-off adopter strap
40 kN (minimum) 40 kN (minimum) Breaking
strength
AVAILABLE LENGTH
10 & 20 meter
