Quick Info

• Material: Aluminum
• Static strength of Hook: 22 kN
• Load Capacity: 140 kg
• Gate opening 110 mm
• Expanded condition length: 3 m(Without attachments)
• Normal condition length: 1.2 m(Without attachments)
• Easy to operate/connect
• Function: Self-locking and self-closing connector
• Hook Standard: EN 362:2004

PHYSICAL PARAMETERS
Robust & durable material made from high impact Aluminum Alloy & Steel.

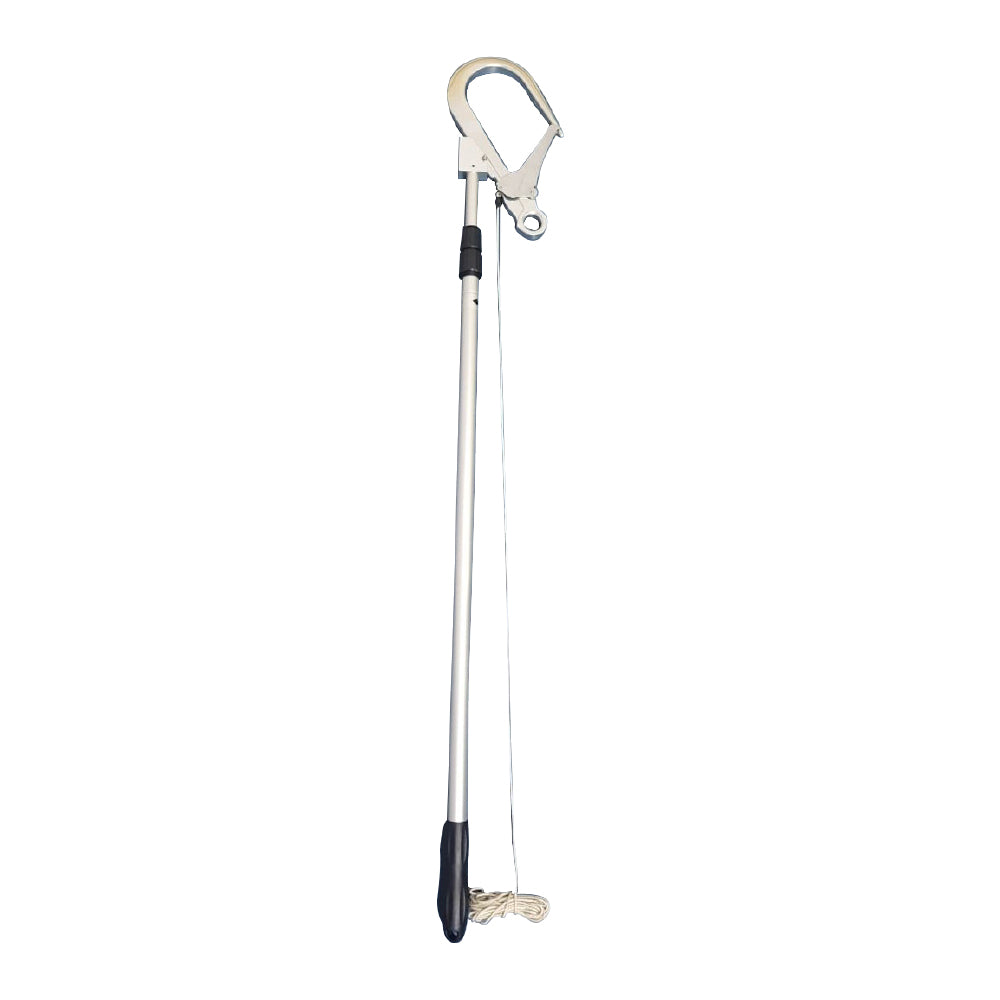

Aluminum Alloy anchor hook with telescopic pole.
Easy to operate / connect.
Expanded condition length: 3 m(Without attachments)
Normal condition length: 1.2 m(Without attachments)
Maximum outreach: 8 m (Including human height)

MECHANICAL CHARACTERISTICS
Material: Aluminum
Static strength of Hook: 22 kN
Load Capacity: 140 kg
Gate opening 110 mm
Approval – EN 362 standard
Function: Self-locking and self-closing connector

FEATURES
The connectors shall withstand the load of 20 kN for a period of 3 min ± 3 s. At the end of the test, the gate shall
still be closed
