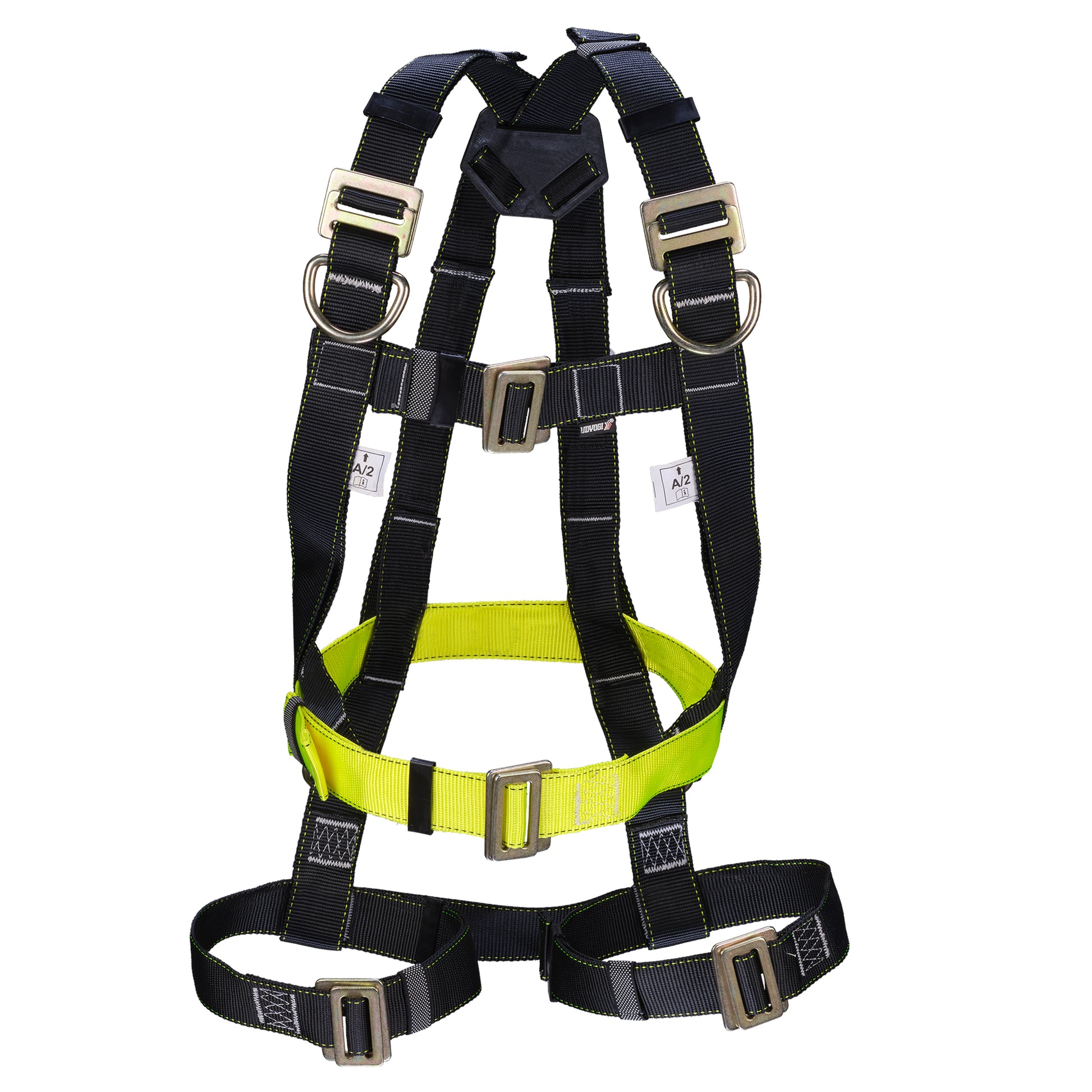

Udyogi Tango 2 SHAB Safety Harness Safety Belt With Shock Absorber (Pack of 10)
Udyogi Tango 2 SHAB Safety Harness Safety Belt With Shock Absorber (Pack of 10)
Bulk Requirement?
Bulk Requirement?
Contact Us Directly
Our Office Address
4624, Ajmeri Gate, Ajmeri Gate, delhi 110006
General Enquiries
info@shreeshakti.net.in
Bulk Enquiries
sales
Call Us
+91-9599206727
+91-7827854354
Our Timing
Mon - Sat : 10:00 AM - 07:00 PM
Couldn't load pickup availability
Anchor point: One dorsal D-ring and two chest attachment D-rings.
Special features: Ergonomic horizontal H-shaped thigh straps.
Facilitate vertical and horizontal movements.
No discomfort or pressure on the groin.
Improved comfort in case of a fall.
Built-in fall indicator for easy inspection Sub-pelvic straps stays low and comfortable.
Materials: Fray-proof dope-dyed polyester webbing Metal buckles of high strength alloy steel.
Stitching: High-strength polyester computer-controlled stitching ensures consistency.
Adjustability: Size adjustment straps at chest, shoulder and thighs.
Standard: IS 3521:2003 ISI Marked.
TANGO 2
Safety Harness
STANDARD : CONFORMING TO EN 361:2002, IS 3521(Part 1): 2021
|
INDUSTRY IDEAL APPLICATIONS |
|
|
Construction |
Working at Height |
|
- |
Ladder climbing |
|
- |
Fall Arrest |
|
SPECIAL FEATURES |
|||||
|
FALL ARREST |
RESTRAINT |
CLIMBING |
H-SHAPED |
CLASS-L |
CLASS-A |
|
WEBBING MATERIAL WEBBING WIDTH |
|
Polyester 44 +/- 1 mm |
|
WEBBING BREAKING STRENGTH |
|
23 kN |
|
STITCH THREADS MATERIAL STITCH THREADS COLOUR |
|
High tenacity virgin multifilament polyester White |
|
METAL COMPONENTS HARNESS COLOUR WEIGHT |
||
|
Shot Blasted Finish High Strength Steel with Zinc Plated thickness - Free of sharp edges. Capable of taking 50 hrs of neutral salt spray testing. |
Blue and Green |
1270 gms |
|
TEST COMPLIANCE - Static Strength |
|
Tested at each attachment element with a force of 15 KN applied for 3 min. |
|
TEST COMPLIANCE - Dynamic Strength |
|
When tested at each Fall Arrest Attachment element with a torso dummy of 100 Kg mass, the full body harness withstands drop tests with a free fall distance of 4 mtr. |
|
FEATURES |
|
One dorsal D-ring for fall arrest. |
|
Two Chest attachment D-rings |
|
Size adjustment straps at chest, shoulders and thighs |
|
Ergonomic horizontal H-shaped thigh straps |
|
No discomfort or pressure on the groin |
|
Improved comfort in case of a fall |
|
Built-in fall indicator for easy inspection |
|
MARKINGS |
|
Manufacturers Logo, details & mailing address |
|
Model No., Batch No., Serial No. |
|
Year of Manufacture |
|
Material |
|
Approval & IS marking |
|
Instruction Pictogram |
|
STORAGE |
|
Store the harness in a dry area away from ultraviolet rays. |
|
Do not store in direct/ high heat or sunlight as this may distort the Colour. |
|
Can be stored and transported in their original cartons to avoid corrosion due to atmospheric moisture, excessive heat or cold. |
|
CLEANING PACKING |
|
Use Clean piece of cloth to wipe the dust 10 pieces per carton |
