Udyogi Tango 2 Safety Harness Safety Belt With Suspension Trauma With Shock Absorber (Pack of 10)
Udyogi Tango 2 Safety Harness Safety Belt With Suspension Trauma With Shock Absorber (Pack of 10)
Couldn't load pickup availability

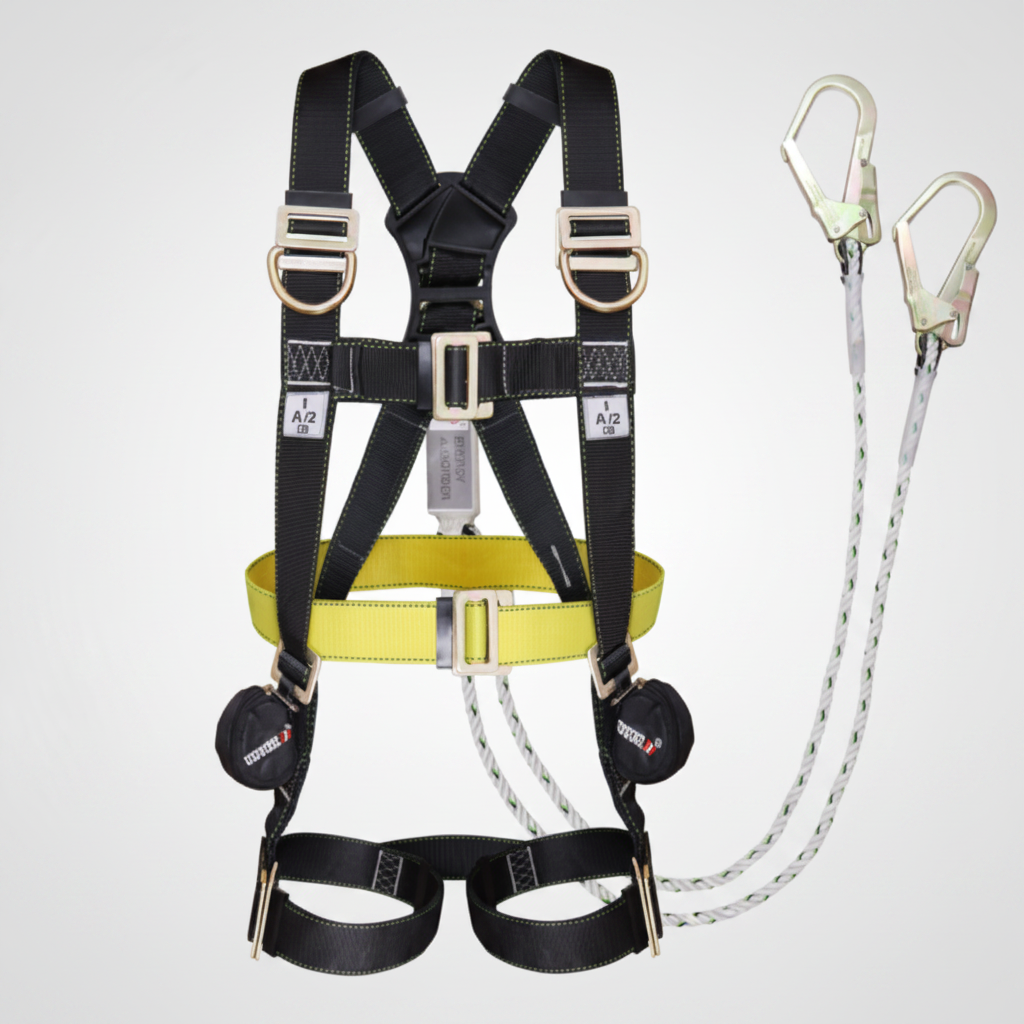

Tango 2 Double Polyamide Rope With Shock/Energy Absorber & Sh 60 Scaffolding Hook With Suspension Trauma Strap
Anchor point: One dorsal D-ring and two chest attachment D-rings.
Special features: Ergonomic horizontal H-shaped thigh straps.
Facilitate vertical and horizontal movements.
No discomfort or pressure on the groin.
Improved comfort in case of a fall.
Built-in fall indicator for easy inspection Sub-pelvic straps stays low and comfortable.
Materials: Fray-proof dope-dyed polyester webbing Metal buckles of high strength alloy steel.
Stitching: High-strength polyester computer-controlled stitching ensures consistency.
Adjustability: Size adjustment straps at chest, shoulder and thighs.
Standard: IS 3521:2003 ISI Marked.

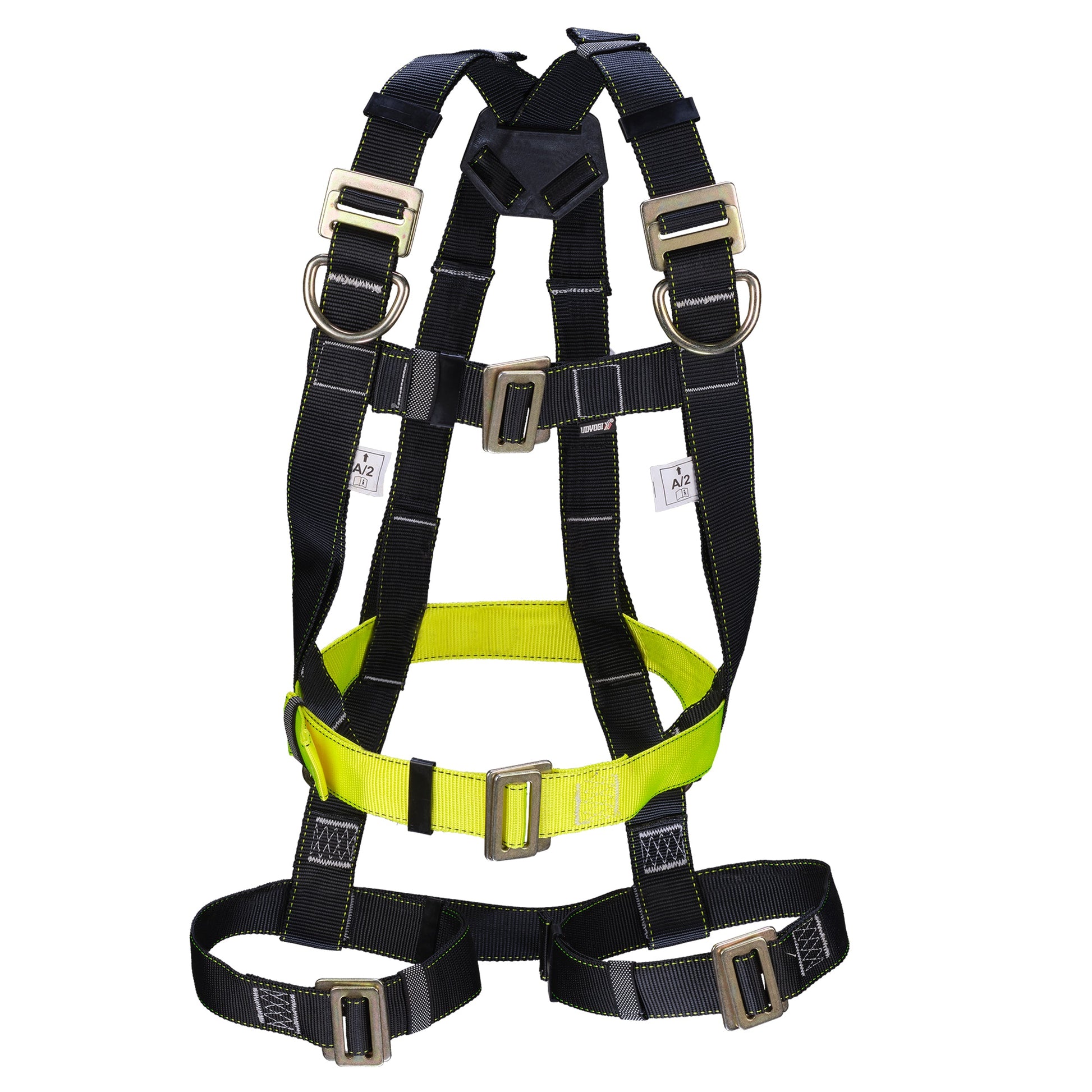

TANGO 2
Safety Harness
STANDARD : CONFORMING TO EN 361:2002, IS 3521(Part 1): 2021
|
INDUSTRY IDEAL APPLICATIONS |
|
|
Construction |
Working at Height |
|
- |
Ladder climbing |
|
- |
Fall Arrest |
|
SPECIAL FEATURES |
|||||
|
FALL ARREST |
RESTRAINT |
CLIMBING |
H-SHAPED |
CLASS-L |
CLASS-A |
|
WEBBING MATERIAL WEBBING WIDTH |
|
Polyester 44 +/- 1 mm |
|
WEBBING BREAKING STRENGTH |
|
23 kN |
|
STITCH THREADS MATERIAL STITCH THREADS COLOUR |
|
High tenacity virgin multifilament polyester White |
|
METAL COMPONENTS HARNESS COLOUR WEIGHT |
||
|
Shot Blasted Finish High Strength Steel with Zinc Plated thickness - Free of sharp edges. Capable of taking 50 hrs of neutral salt spray testing. |
Blue and Green |
1270 gms |
|
TEST COMPLIANCE - Static Strength |
|
Tested at each attachment element with a force of 15 KN applied for 3 min. |
|
TEST COMPLIANCE - Dynamic Strength |
|
When tested at each Fall Arrest Attachment element with a torso dummy of 100 Kg mass, the full body harness withstands drop tests with a free fall distance of 4 mtr. |
|
FEATURES |
|
One dorsal D-ring for fall arrest. |
|
Two Chest attachment D-rings |
|
Size adjustment straps at chest, shoulders and thighs |
|
Ergonomic horizontal H-shaped thigh straps |
|
No discomfort or pressure on the groin |
|
Improved comfort in case of a fall |
|
Built-in fall indicator for easy inspection |
|
MARKINGS |
|
Manufacturers Logo, details & mailing address |
|
Model No., Batch No., Serial No. |
|
Year of Manufacture |
|
Material |
|
Approval & IS marking |
|
Instruction Pictogram |
|
STORAGE |
|
Store the harness in a dry area away from ultraviolet rays. |
|
Do not store in direct/ high heat or sunlight as this may distort the Colour. |
|
Can be stored and transported in their original cartons to avoid corrosion due to atmospheric moisture, excessive heat or cold. |
|
CLEANING PACKING |
|
Use Clean piece of cloth to wipe the dust 10 pieces per carton |

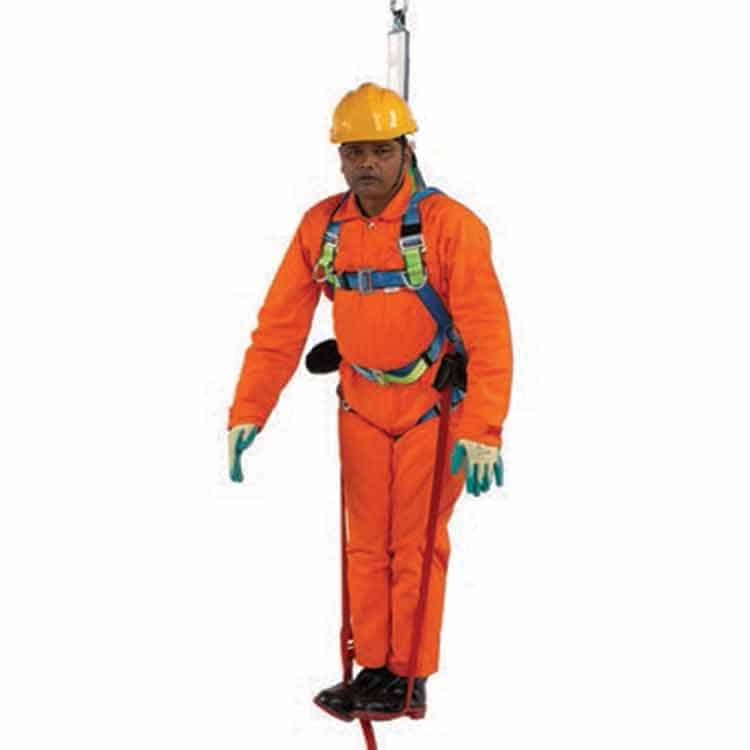

SUSPENSION TRAUMA STRAP
|
INDUSTRY IDEAL APPLICATIONS |
|
|
Work at a height |
Suspend at a height, after arrest a fall. |
|
Wind |
|
|
Power |
|
|
Construction |
|
|
SPECIAL FEATURES |
|
|
LIGHT WEIGHT |
FALL RESTRAINT |
|
FEATURES |
|
The two packs are compact, lightweight and easily installed to most harness sizes, styles and brands. |
|
After a fall, the packs can quickly be unzipped, deploying the web loop and hook straps which can easily be connected and adjusted to provide a strap for the foot to conveniently step into. |
|
Length of the strap is adjustable at five size, can be adjust according to user comfort |
|
This allows the worker to stand in their harness and relieve the pressure through the body while waiting for rescue. |
|
Safety Strap Helps Prevent Suspension Trauma |
|
MECHANICAL CHARACTERISTICS |
|
Material: Durable polyester |
|
Webbing: 20mm wide |
|
Closures: Zipper fasteners |
|
Hook: Alloy steel with golden zinc plating |
|
Capacity: 141kg) Weight: 0.2 lbs. (91g) |
|
Length: Adjustable 1.1 m/1.0 m/0.9 m/0.8m/0.7m |
|
Weight: 200gm (Approx.) |
|
CLEANING |
|
Use clean piece of cloth to wipe the dust |
|
STORAGE |
|
Store the harness in a dry area away from ultraviolet rays. |
|
Do not store in direct / high heat or sunlight as this may distort the Colour. |
|
Can be stored and transported in their original cartons to avoid corrosion due to atmospheric moisture, excessive heat or cold. |
|
PACKING |
|
10 pieces per carton |
