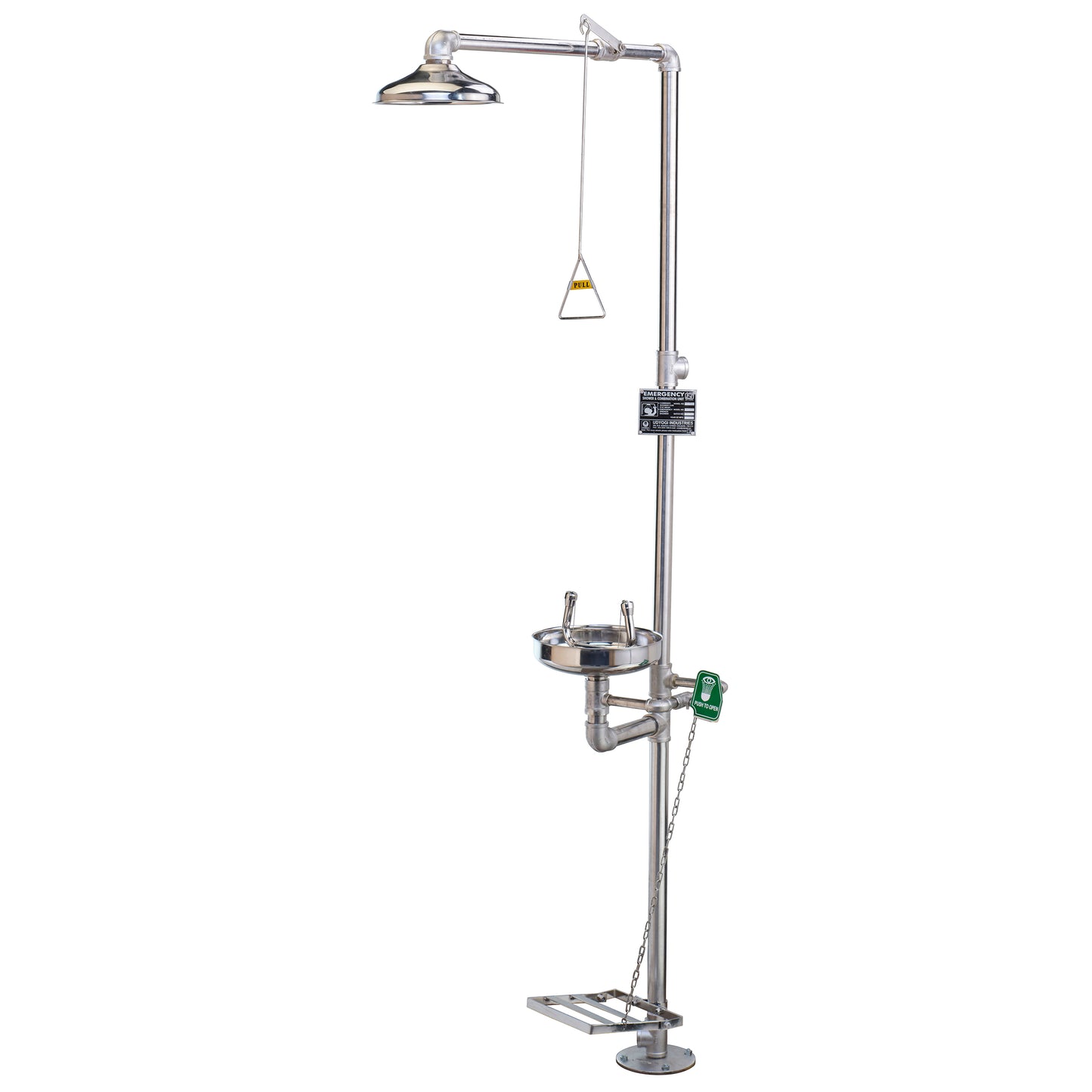

Udyogi Safety Shower and Eyewash with Pedal 6250 SS

INDUSTRY IDEAL APPLICATIONS

Food / Steel

Corrosive Environment

Chemical / Mining

Battery Charging Areas

Pharma

Spraying Operations

Laboratories

Against Acid / Chemical Spillage

Automobile

Dipping Operations

-

Hazardous Substances Dispensing Areas

SPECIAL FEATURES

POWDER COATED/ ANTI CORROSIVE

HIGH DEILUGE ACTION

EASY MAINTENANCE

FIRST AID AIDING EQUIPMENT

EASY OPERATION

EASY OPERATION

SHOWER HEAD & VALVE FUNCTIONS

Through passage S.S 304 valve that opens automatically when Pull Rod is pulled

The valve stays open until it is manually closed

Shower head is between 2100 mm - 2400 mm above floor surface as per standards

Shower bowl dia 260 ± 5 mm

Pull Rod height is 1752 mm max from ground as per standards

1” lock nut provided for perpendicular positioning of the valve with the head bowl

SUPPLY WATER CONDITION MATERIAL

Supply Water

Drinking /Tepid Water

Pipe

SS 304

OperatingPressure

2.1 Kg / cm2(30 PSI)

Fitting

SS 304

Operating Temp

Ambient

Flange

SS 304

EYE WASH BOWL

High visible SS 304 bowl resistant to damage from most acid, akali and oil

Size of SS bowl 260 ± 5 mm

INLET DIMENSIONS

Inlet height of the combination unit is 1660 ± 20 mm

BASE PLATE

To hold the shower structure in a stable position

Diameter of the base plate shall be 180 ± 3 mm

Flange P.C.D 148.5 ± 2 mm

4 nos. hole of 13 ± 2 mm is provided for bolting the base plate in proper position

BODY VALVE & PUSH PLATE

1⁄2” SS 304 BSP Ball valve connects units to uninterruptible water supply as per requirements.

SS 304 push plate with a push to open functions for easy operation of the eye wash fountain through valve

FEATURES

Water inlet connections of 1-1⁄4” NB

Water outlet connection – 11⁄4” NB

Head shower discharge rate – 76 lpm (Minimum)

Eye wash discharge rate – 12 lpm. (Minimum)

Push plate for one hand operation

Push to open valve - connects unit to uninterruptible water supply

Base plate - to hold the shower structure in a stable position (Size - 180 mm)

Newly introduced straight model body for better flow of water in minimum time

With foot pedal for hands free operation to supply and control water flow through eye wash heads

FOOT PEDAL & DRAIN LINE

SS 304 pedal set attached near the drain line at an easy reachable position for everyone

Pedal connected to the push plate with the help of a PVC coated rope for easy supply and control of water flow in the eye wash head without use of hands

1-1/4” drain line for removal of used water

EYE WASH ASSEMBLY

Two high-flow sprays, operated at low pressure, which washes the eye and face

Anti-dust head covers protect the eye wash head from airborne contaminants and automatically open with water pressure

PACKING GROSS WEIGHT

1 set per box 18 Kg.
