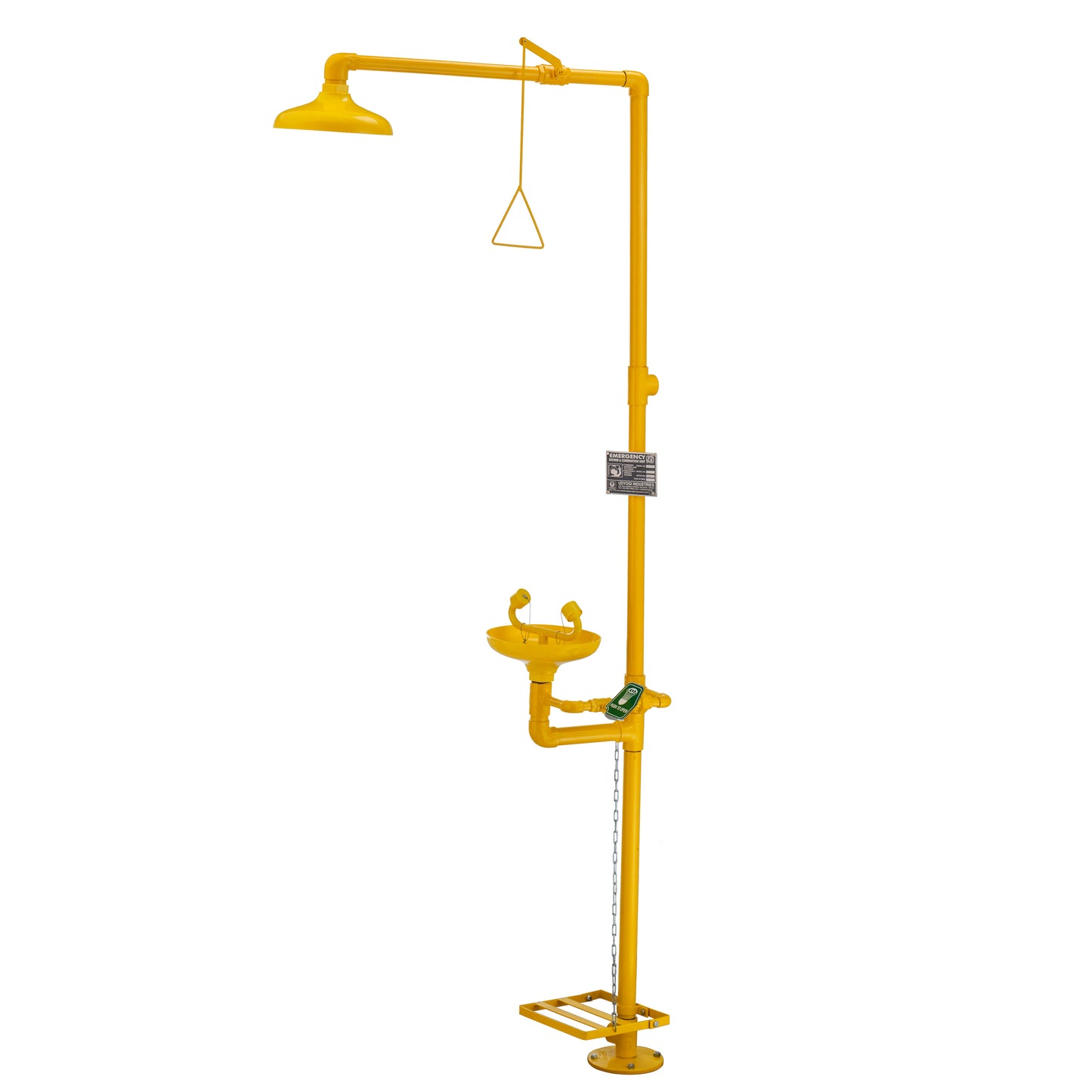

Udyogi Safety Shower and Eyewash with Pedal 6250 GI

INDUSTRY IDEAL APPLICATIONS

Food / Steel

Corrosive Environment

Chemical / Mining

Battery charging areas

Pharma

Spraying operations

Laboratories

Against Acid / Chemical Spillage

Automobile

Dipping operations

-

Hazardous substances dispensing areas

SPECIAL FEATURES

POWDER COATED/ ANTI CORROSIVE

HIGH DEILUGE ACTION

EASY MAINTENANCE

FIRST AID AIDING EQUIPMENT

EASY OPERATION

EASY OPERATION

SHOWER HEAD & VALVE FUNCTIONS

Provided S.S 304 valve that opens automatically when Pull Rod is pulled.

The valve stays open until it is manually closed.

Shower head is between 2100 mm - 2400 mm above floor surface as per standards.

Shower bowl dia 270 ± 5 mm

Pull rod height is 1752 mm max from ground as per standards.

1” lock nut provided for perpendicular positioning of the valve with the head bowl

SUPPLY WATER CONDITION MATERIAL

Supply Water

Drinking / Tepid Water

Pipe

SS 316

Operating Pressure

2.1 Kg / cm2 (30 PSI)

Fitting

SS 316

Operating Temp

Ambient

Flange

SS casting 316 grade

INLET DIMENSIONS

Inlet height of the combination unit is 1400-1500 mm approx

EYE WASH ASSEMBLY

Two high-flow sprays, operated at low pressure, which washes the eye and face.

Anti-dust flip covers protect the eye wash head from airborne contaminants and automatically open with water pressure.

Distance between two eye wash head 140 to 200 mm as per standards.

Eye wash fountain head is between 960 mm – 1140 mm above floor surface.

EYE WASH BOWL

High visible Yellow ABS bowl resistant to damage from most acid, alkali and oil.

Size of ABS Bowl 270 ± 5 mm

FEATURES

Water inlet connections of 1-1⁄4” NB

Water outlet connection – 11⁄4” NB

Head shower discharge rate – 76 lpm (minimum)

Eye wash discharge rate – 12 lpm. (minimum)

Powder coated materials for better protection and durability.

Push to open valve - connects unit to uninterruptible water supply.

Push plate for one hand operation.

Base plate - to hold the shower structure in a stable position (Size-180 mm).

Newly introduced straight model body for better flow of water in minimum time.

With foot pedal for hands free operation to supply and control water flow through eye wash heads

BODY VALVE & PUSH PLATE

1⁄2” SS 304 powder coated BSP Ball valve connects units to uninterruptible water supply as per requirements.

GI powder coated push plate with a push to open functions for easy operation of the eye wash fountain through valve.

FOOT PEDAL & DRAIN LINE

GI Powder coated pedal set attached near the drain line at an easy reachable position for everyone.

Pedal connected to the push plate with the help of a PVC coated rope for easy supply and control of water flow in the eye wash head without use of hands.

1-1/4” drain line for removal of used water.

BASE PLATE

To hold the shower structure in a stable position.

Diameter of the base plate shall be 180 ± 3 mm

Flange P.C.D 148.5 ± 2 mm

4 nos. hole of 13 ± 2 mm is provided for bolting the base plate in proper position.

PACKING GROSS WEIGHT

1 set per box 17 Kg 800 grm
