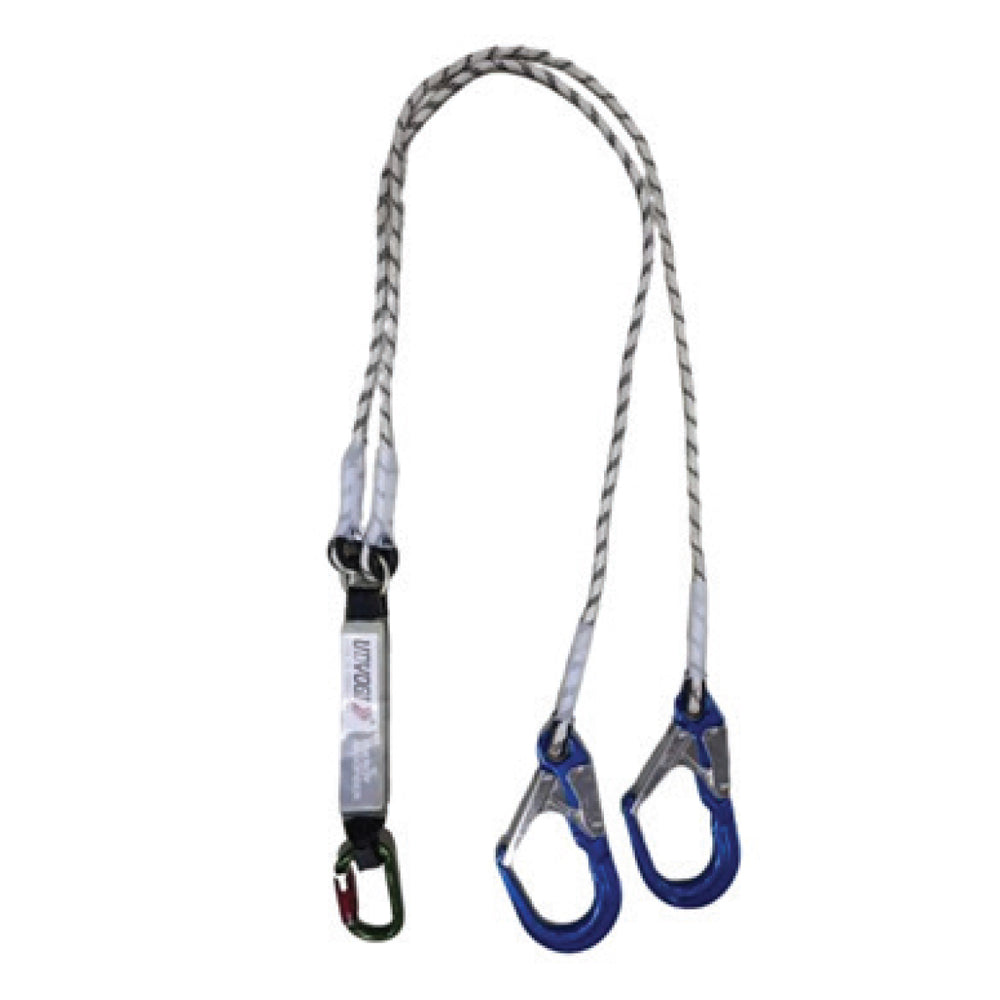

Udyogi Safety Lanyard With Aluminium Hook BL 61 (Pack of 5)
Udyogi Safety Lanyard With Aluminium Hook BL 61 (Pack of 5)
Couldn't load pickup availability
Udyogi BL61
Quick Info
STANDARD – EN 354:2010, EN 355:2002
- Energy Absorbing Double Braided Rope Lanyard
- Static strength- 22 kN
- Maximum dynamic load – 6 kN
- Fall arrest distance – 5.75 m (Maximum)
- Maximum capacity 100 kg – 1 user
- Carabiner 313 gate opening – 18 mm
- SH-61 hook gate opening – 55 mm
BL61
Safety Lanyard
STANDARD : CONFORMING TO EN 354:2010, EN 355:2002
|
INDUSTRY IDEAL APPLICATIONS |
|
|
Construction |
Work At Height |
|
Process Unit |
Fall Arrest |
|
SPECIAL FEATURES |
|
|
LIGHT WEIGHT |
FALL RESTRAINT |
|
ROPE MATERIAL |
|
10.5mm Kernmantle Rope |
|
STITCHING THREAD |
|
High Tenacity Virgin Multifilament Polyester |
BREAKING STRENGTH LANYARD LENGTH SHOCK ABSORBER LENGTH
23 kN (Min) 1.8/2.0 meter (Hook to Hook) 0.3 m
MECHANICAL CHARACTERISTICS
Static strength of lanyard 22 kN (minimum)
MARKINGS
Manufacturers Logo, details & mailing address
Model No., Batch No., Serial No.
Maximum dynamic load – 6 kN
Year of Manufacture
Fall arrest distance – 5.75 m (Maximum)
Maximum capacity 100 kg (For the use of single user only)
Material
Approval & IS marking
Carabiner 313 gate opening – 18 mm (Maximum)
Instruction Pictogram
SH-61 hook gate opening – 55 mm (minimum)
|
FEATURES |
|
Energy Absorbing Double Braided Rope Lanyard |
|
One side (Lanyard End) connected with SH-61 Aluminium scaffolding hook and on other side connected with quarter turn (EASY 313) Carabiner |
|
STORAGE |
|
Store the harness in a dry area away from ultraviolet rays. |
|
Do not store in direct / high heat or sunlight as this may distort the Colour. |
|
Can be stored and transported in their original cartons to avoid corrosion due to atmospheric moisture, excessive heat or cold. |
|
CLEANING |
|
Use clean piece of cloth to wipe the dust |
|
PACKING |
|
10 pieces per carton |
