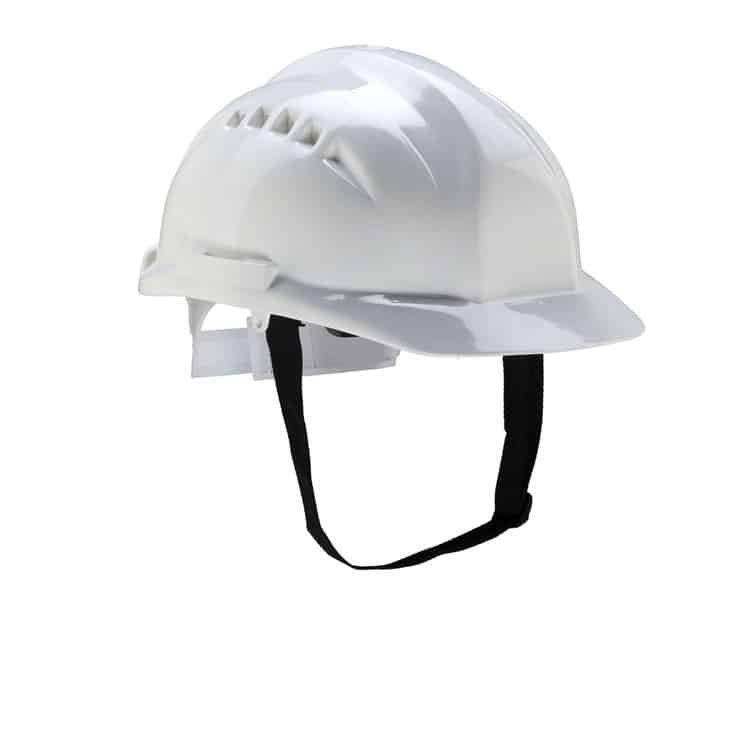

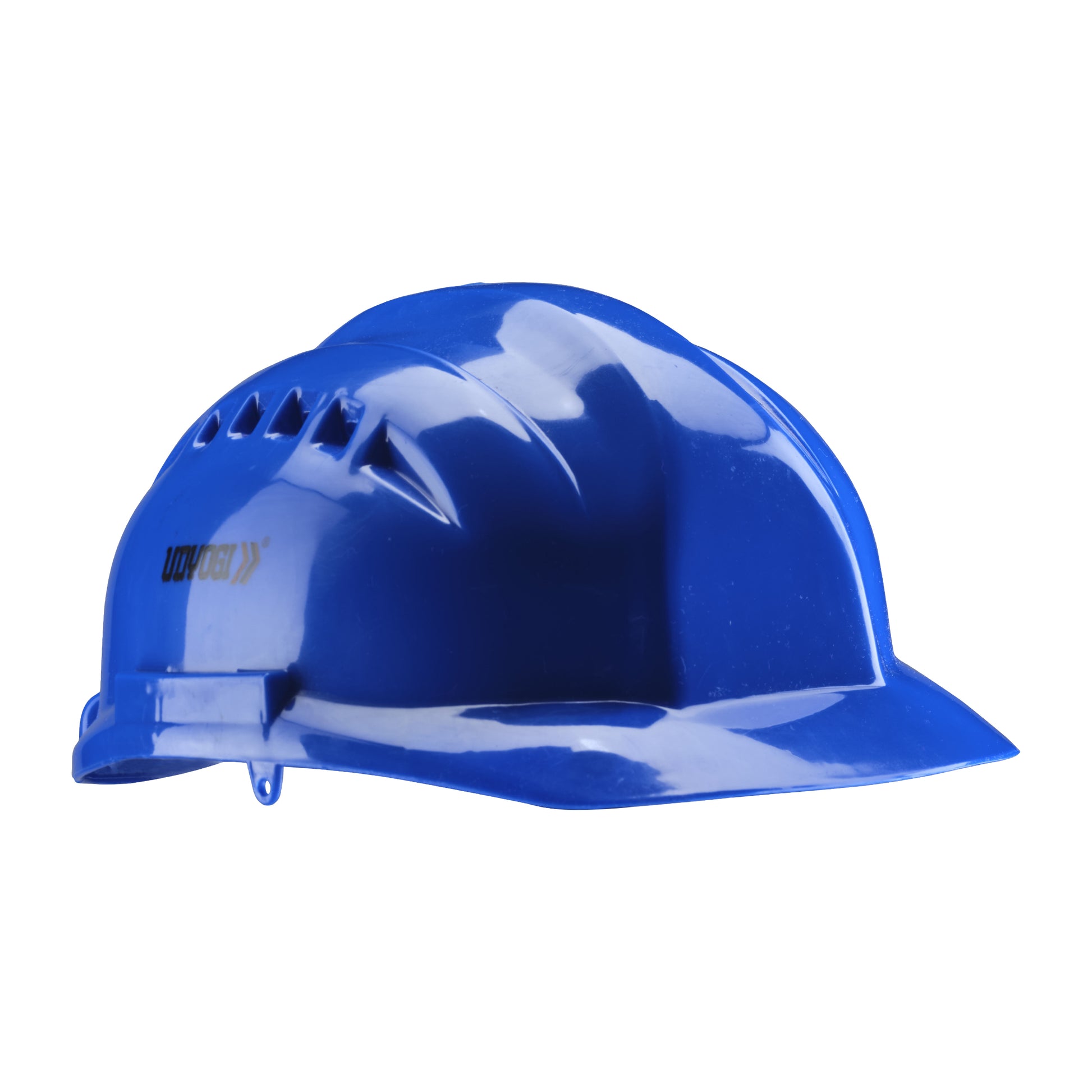

Udyogi Safety Helmet Ultra Vent 7000LRX Ratchet
Udyogi Safety Helmet Ultra Vent 7000LRX Ratchet
Protects our head from falling objects
- It can be used in construction, process industries, mining industries, etc.
- Standard: IS 2925: 1984, EN 397, DGMS
- Made of HDPE material
- Designed for use in industries where there is a hazard that can damage the skull
- Aesthetic look with a smooth finish – solid colour resin for a permanent, no-chip, no-peel finish
- The unique crown ventilation system provides air circulation & comfort
- Greater impact resistance and crack resistance
- 6-point plastic/textile suspension with slip fit or ratchet fit adjustment
- Adjustable chin strap for customized fit and comfort
- High quality, non-contact sweatband maximizes for optimal cooling and hygiene
INDUSTRY
Iron & steel Cement Automotive Power & utilities Metals & mining
SPECIAL FEATURES
Scan Here For More Info
IDEAL APPLICATIONS
Construction & projects works
Material handling Shop floor Packaging Maintenance
Ultravent 7000 Series – Safety Helmet
LIGHT WEIGHT
COLOURS:
ADVANTAGES
RECYCLABLE
White Blue
STRONG & DURABLE
TEMPERATURE RESISTANT
RATCHET FIT
Gray
STANDARD :
COMPONENT
Shell
Peak
Brim
Cradle
Head band Sweat band Chin strap Chin strap clip Ratchet
Slot Ventilation
FEATURES
IS 2925:1984, EN 397, CE
MATERIAL
HDPE (High density poly ethylene) HDPE
HDPE
LDPE / Textile
LDPE
Brushed cloth on foam
PP
Nylon
Nylon
Universal slots on the both sides Both side of the crown ventilated
Yellow
Red
Green
Orange
Violet
Shell proprietary injection-moulded HDPE compound
Aesthetic look with smooth finish – solid colour resin for a permanent, no-chip, no-peel finish
Unique crown ventilation system provides air circulation & comfort Greater impact resistance and crack resistance
6-point plastic / textile suspension with slip fit or ratchet fit adjustment Adjustable chin strap for customized fit and comfort
High quality sweat band provides comfort
Radiant heat resistivity higher than ABS helmets yet light weight
Designed for use in industries where there is a hazard, which can damage skull
Resistant to high level impact
22 mm, peak protects eye & face from falling objects Rim around the shell, drains rain water
6-point adjustment, perfect load distribution Universal fit, dia. 53 cm – 60 cm
Sweat absorbent, long time use
Holds the shell, universal fit
Attachment between shell and chin strap
Fully adjustable, smooth & universal fit
Compatible with head & face PPE accessories
4 point ventilation on each side for air circulation
APPLICATION
Protects head from falling objects
Protects splashes, spatters etc.
STORAGE
Can be stored and transported in their original cartons at ambient temperature (0oC to + 30oC)
Shell may be stored in the dark for up to 5 years
Do not store in direct / high heat or sunlight as this may distort the shell
CLEANING
Clean using warm soapy water and soft cloth
Do not use solvents or abrasives
WEIGHT
Slip fit - 390 grams, Ratchet fit -
420 grams
PACKING
50 pieces per carton
