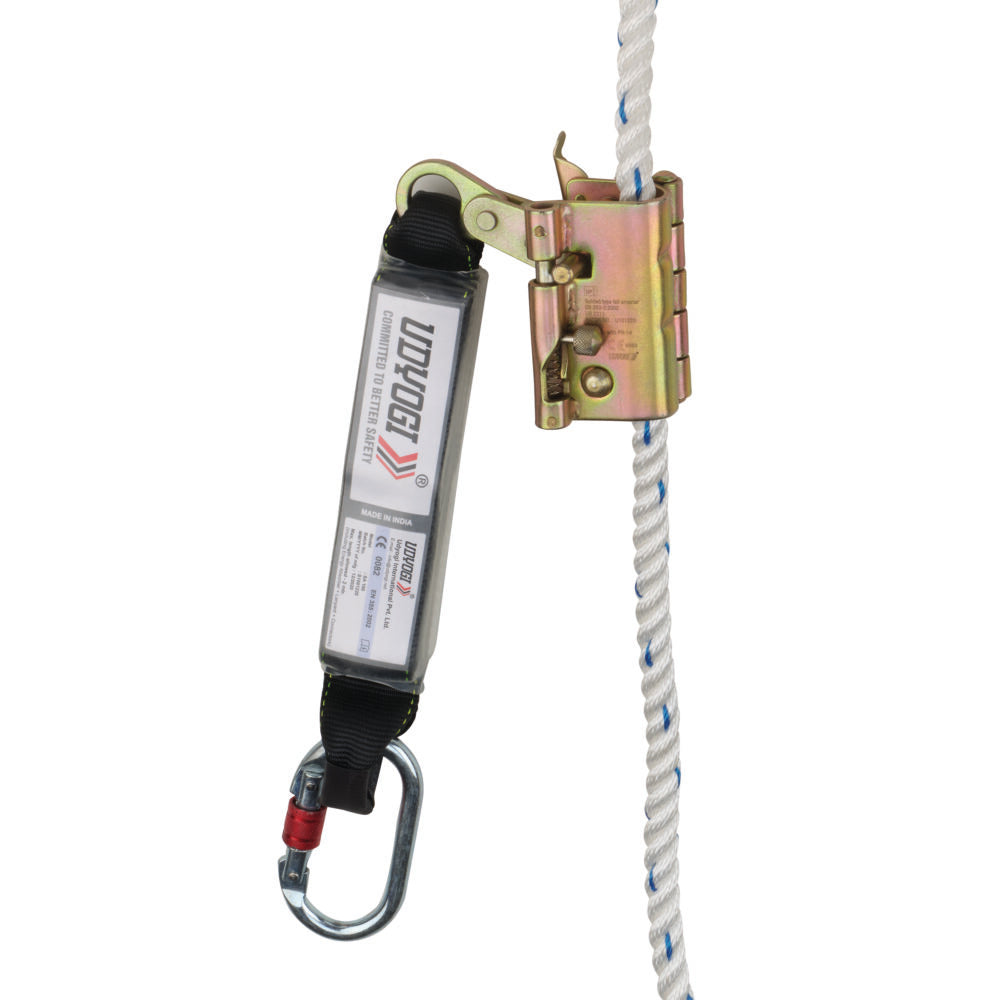

Udyogi Rope Grab Fall Arrestor UB 2011S With Energy Absorber

MOC - ALLOY STEEL FALL ARRESTER WITH SHOCK ABSORBER WORKS ON 14 MM DIA POLYAMIDE ROPE
(PR-14) CERTIFIED AS PER EN353-2:2002
(BOX INCLUDES CARABINER)

Udyogi

UB 2011S
Rope Grab
STANDARD : EN 353-2:2002
SPECIAL FEATURES
ROPE GRAB
MARKINGS
Manufacturers Logo, details & mailing address
Model No., Batch No., Serial No.
Year of Manufacturing
Material
Approvals & CE
20 pieces per carton
PACKING
STORAGE
Can be stored and transported in their original cartons
to avoid wear & tear due to transportation & atmospheric
moisture, excessive heat or cold.
FEATURES
UB 2011S - With energy absorber
Working at Height
Ladder climbing
Fall Arrest
IDEAL APPLICATIONS
Construction
INDUSTRY
DETACHABLE TYPE FALL ARRESTER
Mild steel, IS:2062, Grade ‘’A’’ 1999, Equivalent to DIN 17100 ST-52.3 Heat treated Zinc plated
Tensile Strength -22 kN (min)
ENERGY ABSORBER
Synthetic polyester narrow woven webbing,
AZO free dyed 44mm ±1mm wide
Construction : Bi-colour red & black.
Breaking strength: 22 kN (min)
The breaking tenacity of the synthetic fibres > 0.6 N/Tex
