• Heavy duty aluminum poles for easy handling
• Vinyl-coated nylon covers that resist stains,
• blood and bodily fluids
• Non-Slip hand grips help EMTs keep a firm grasp
• on the stretchers
• Folds lengthwise and crosswise for compact storage
• Packed in a durable horizontal lifting bag

TEST COMPLIANCE - DYNAMIC STRENGTH
When subjected to a fall with a rigid mass of 100 kg.,
the braking force is less than 6 kN
STORAGE
Store in a dry area away from ultra violet rays
Can be stored and transported in their original cartons
to avoid corrosion due to atmospheric moisture,
excessive heat or cold
FEATURES
Light weight corrosion resistant design provides durability
Comes Equipped for hoisting by helicopter in horizontal
position or hoisting in vertical position in industrial safety
The stretcher is rolled for storage in a tough cordura
backpack which is included with the system
The system comes complete for most applications
Inert to all conditions, body fluids & blood
Allows Safe carrying of the wounded
Easy to use and store
Combination of optimum support and function
Extremely flexible rescue system
Highly durable
Can be used both vertically as well as horizontally
PHYSICAL PARAMETERS
Securing straps with steel buckles are sewn onto
the stretcher through brass grommets which contribute
to the strength and durability
It will not break even at 490O C.
Packed in a durable backpack
Use clean piece of
cloth to wipe the dust
CLEANING
1 piece per polybag
PACKING
E-mail : info@udyogi.net
Website : www.udyogisafety.com
294, B. B. Ganguly Street,
2nd Floor, Kolkata - 700 012
Tel. : +91 33 2225 1470/71/72
Udyogi
Scan Here For More Info
SR - RS

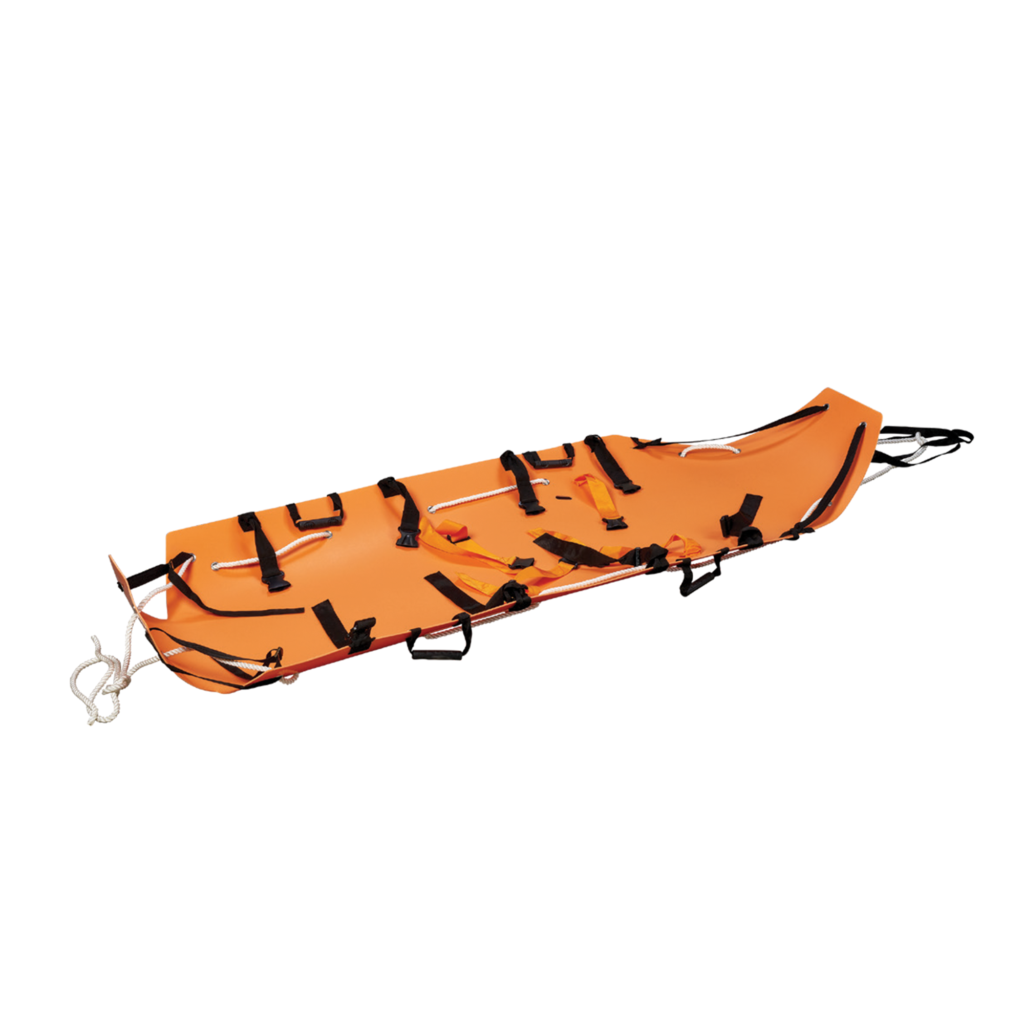

Stretch-R
STANDARD : MEDICAL DEVICE (93/42/EC) Class 1
Diagonal Rescue
Medical Emergency Evacuation
Confined Space
IDEAL APPLICATIONS
General Industry
INDUSTRY
MECHANICAL CHARACTERISTICS
Material : Special plastic grade which is
both flexible and durable
Self Weight : 9 kg
Load Limit : 159 Kg
Product Size (L x W x H) : 250 x 84 x 40 cm
Folding Size (L x W x H) : 102 x 17 x 8 cm
Lift Type : Horizontal & Vertical
SPECIAL FEATURES
HORIZONTAL RESCUE VERTICAL RESCUE DIAGONAL RESCUE
