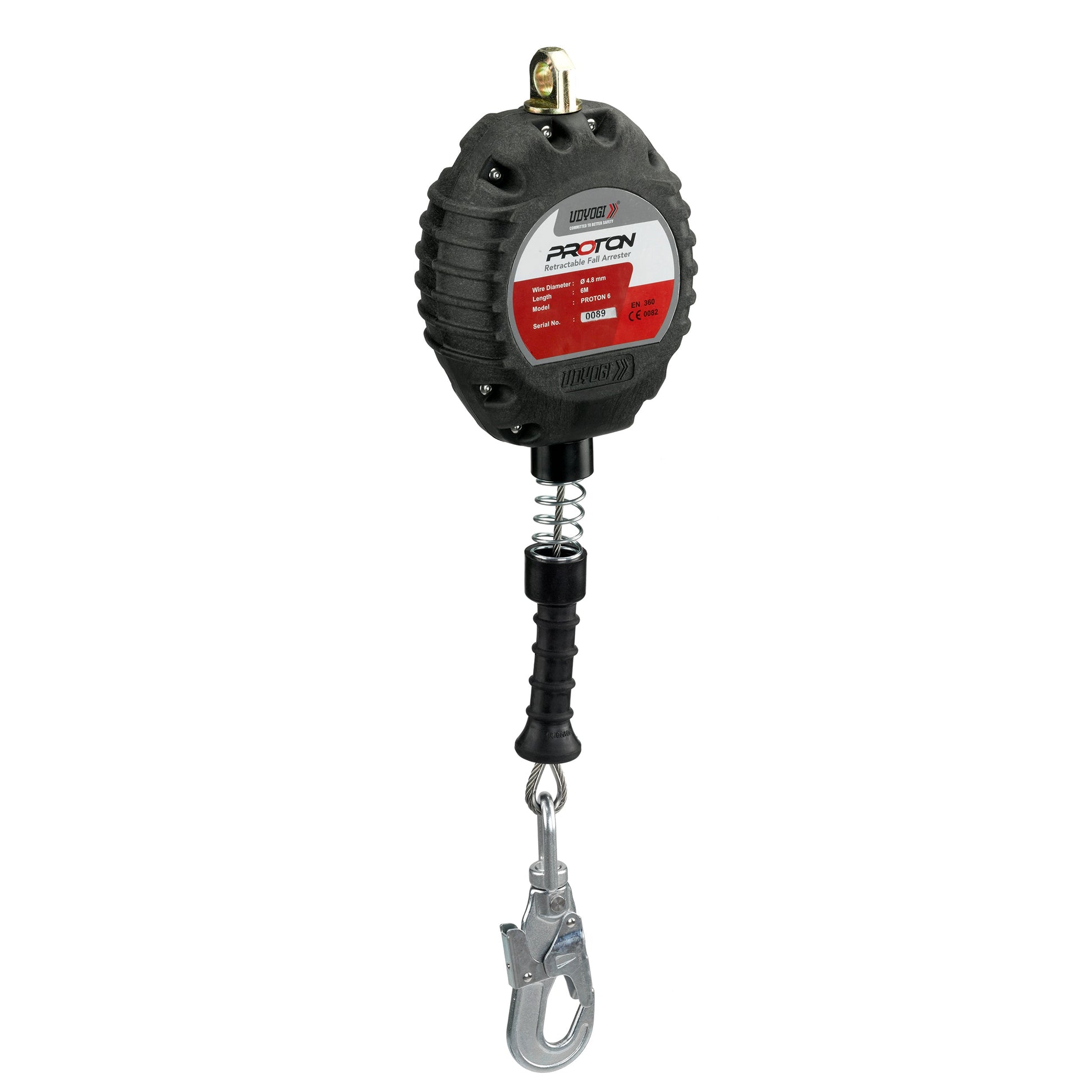

Udyogi Proton Fall Arrester Retractable Block - 12 Meters

SPECIAL FEATURES

FALL ARREST

INDUSTRY IDEAL APPLICATIONS

Construction

Working at Height

Ladder Climbing

Fall Arrest

MECHANICAL CHARACTERISTICS

Breaking Strength - 15 kN

Breaking Force - Less than 6 kN

Fall Arrest Distance - 1.5 m (Maximum)

Temp. Range - −30°C to 50°C

PHYSICAL PARAMETERS

Robust & durable casing made from high impact glass field nylon

Has a swivel anchorage eye at one end

Snap hook equipped with fall indicator and swivel action

TEST COMPLIANCE - STATIC STRENGTH

When subjected to a fall with a rigid mass of 100 kg., the breaking force is less than 6 kN, and the arrest distance is less than 1.5 m

RETRACTABLE LANYARD

Material - Stainless Steel

Diameter - Φ4.8 mm

Breaking Strength - Greater than 15 kN

AVAILABLE LENGTH

5, 6, 7, 10, 12, 15 & 18 mtr

FEATURES

Wire rope type retractable fall arrester

High Impact resistance polyamide casing

Stainless steel rope with swivel snap hook

In case a fall occurs, the automatic braking system in the block immediately arrests the fall

Included conduit rope

Maximum load capacity : 100 kg

MARKINGS

Manufacturers Logo, details & mailing address

Model No., Batch No., Serial No.

Year of Manufacturing

Material

Instruction Pictogram

CLEANING

Use clean piece of cloth to wipe the dust

PACKING

4 pieces per carton
