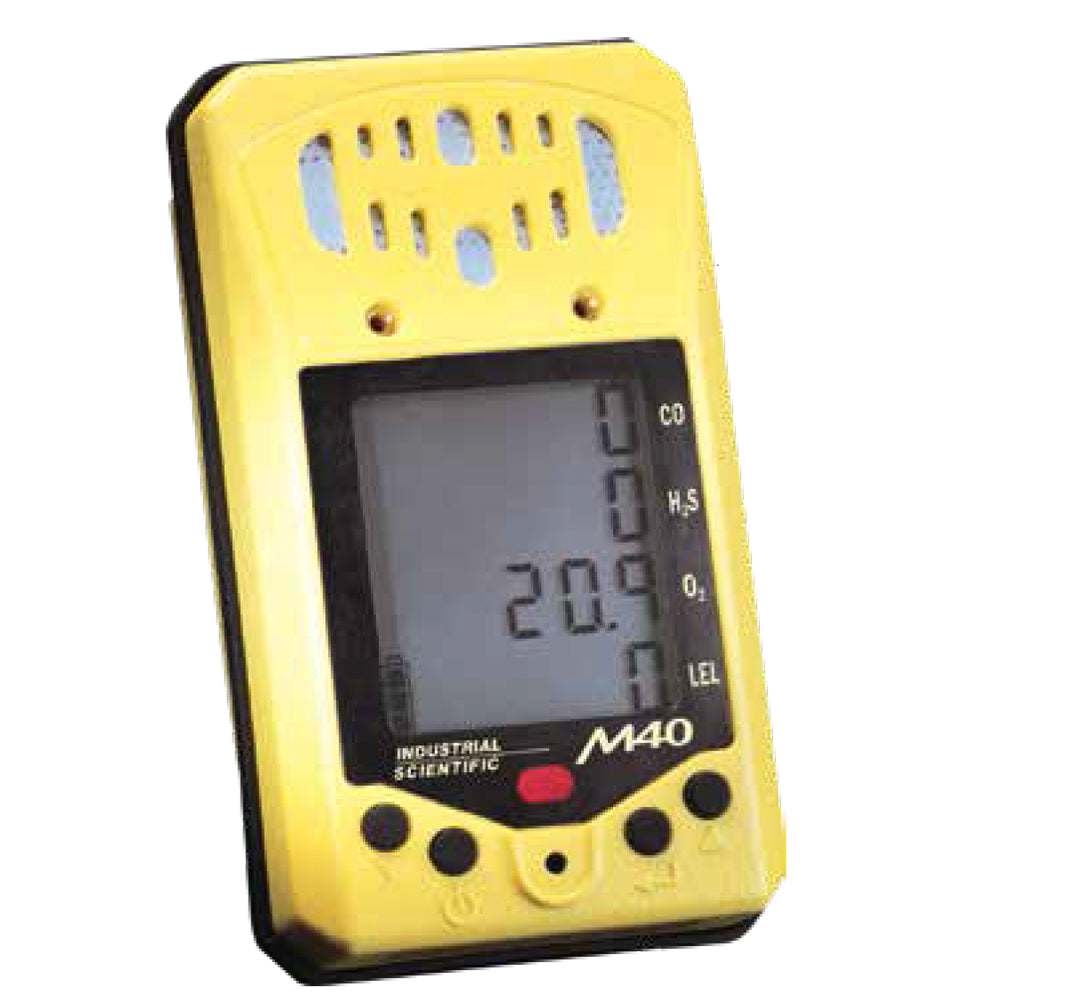

Udyogi Portable Gas Detector M40 Multi Gas Detector

Industrial Scientifi c is pleased to offer the

M40, a versatile multi-gas monitor capable of

detecting CO, H2S, O2, and combustible gases

for a wide variety of hazardous and confi ned space

applications.

The M40 is housed in a rugged, impact-resistant case to provide superior performance and durability in harsh environments and resistance to radio-frequency and electromagnetic interference. Its four-button interface provides simple, intuitive operation and calibration, and the M40’s five-second “Off” feature prevents unintentional shut-offs. The unit’s compact size and economical price make it an ideal personal monitoring instrument.

Other standard features include a vibrating alarm, lithium-ion battery, peak/hold readings, large LCD, 75 hour datalogging capacity, and belt clip. An optional compact parasitic sampling pump enables remote sampling from up to 50 feet away.

● 1 to 4 gas monitoring for O2, H2S, CO & combustible gases

● 18-hour runtime with lithium-ion battery

● Includes vibrating, 90 dB audible, and LED visual alarms

CASE: High-visibility, impact resistant composite – RFI,

EMI and ingress protection tested and approved

DIMENSIONS: 4.30"h x 2.45"w x 1.37"d

(10.9cm x 6.22cm x 3.48cm)

Large LCD provides simultaneous and

continuous readout of up to all four gases.

Large, high-contrast characters, graphic icons

and unique amber backlight provide clear

display visibility in low-light conditions.

WEIGHT: 8.6 ounces (244 g)

Weight with pump: 11.6 ounces (326 g)

Vibrating, 90 dB audible and ultra-bright LED

visual alarms. High/low, STEL, TWA and low

battery alarms. Flow alarm indicator when

SENSORS: The M40 is available in a 1, 2, 3, or 4-gas

used with optional SP40 pump.

configuration including oxygen, hydrogen

sulfide, carbon monoxide and combustibles

DATALOGGING: Up to 75 hours of datalogging capability

/hydrocarbons.

TEMPERATURE RANGE: -4º to 122ºF (-20º to 50ºC)

CO range: 0-999 ppm in 1 ppm increments

H2S range: 0-500 ppm in 1 ppm increments

O2 range: 0-30% volume in 0.1% increments

Combustibles: 0-100% LEL in 1% increments

The M40 features LEL over-range protection

HUMIDITY RANGE: 15 to 95% RH, typical, 0 to 99% RH

intermittent (non-condensing)

IP RATING: IP65

Rechargeable lithium-ion integral battery

APPROVALS: UL – Class I, Div. I, Groups A, B, C, D; T4

CSA – Class I, Div. I, Groups A, B, C, D; T4

18 hour – instrument (non-alarm)

Cenelec (ATEX) – EEx ia d IIC T4

12 hour – instrument with pump (non-alarm)

Australia – Ex ia s Zone 0 IIC T4
