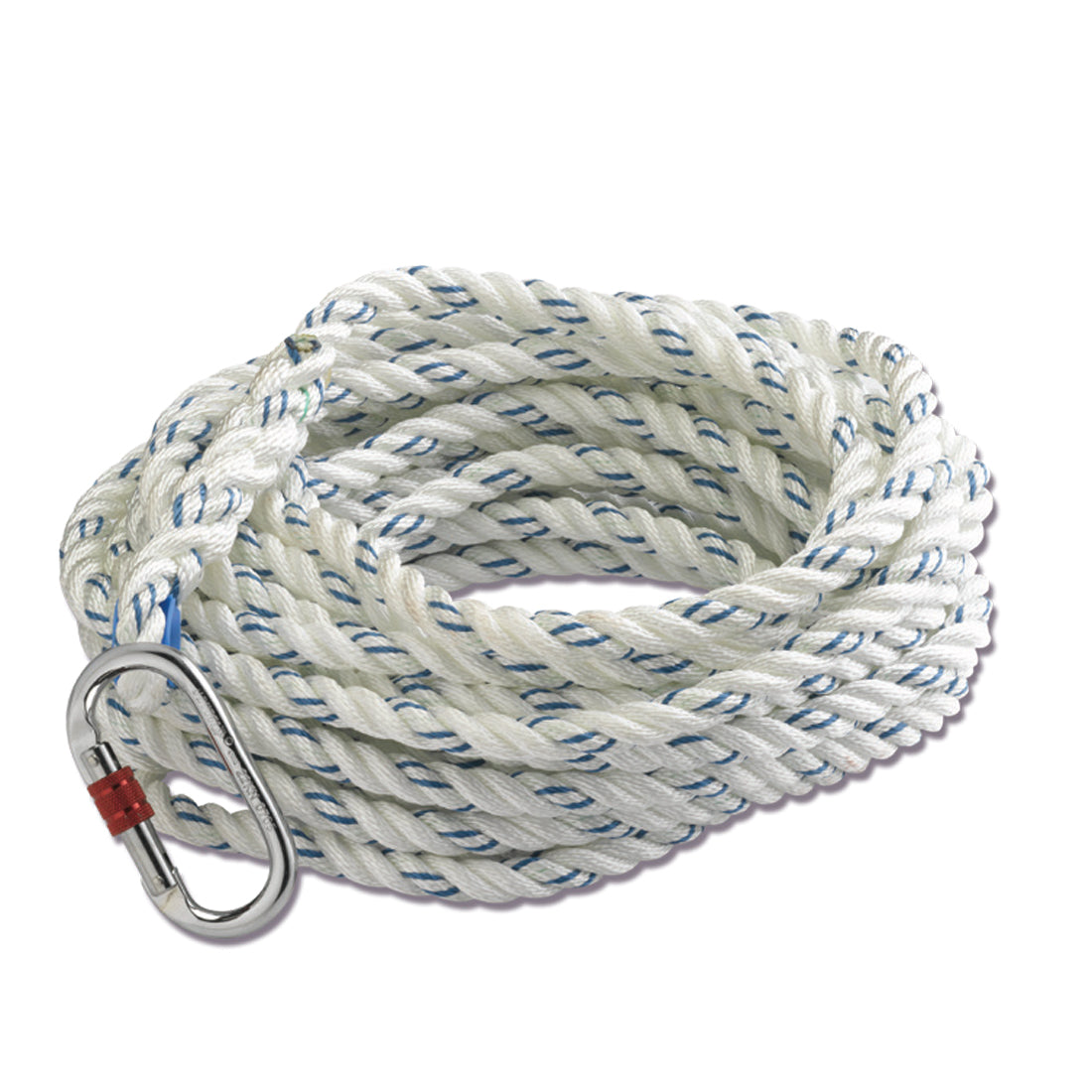

Udyogi Polyamide Rope 14mm For Fall Arrestor PR 14

SPECIAL FEATURES

FALL ARREST

STRONG

TEMPORARY ANCHORAGE

INDUSTRY IDEAL APPLICATIONS

Construction

Working at Height

Telecommunication

Fall Arrest

Transmission

MECHANICAL CHARACTERISTICS

Rope Material - Polyamide Rope

Breaking Strength - 38 kN

Rope Dia - Ø 14 mm Rope

Minimum Breaking Strength -
15 kN (for 10.5mm), 22kN (for 14mm)

TEST COMPLIANCE - STATIC STRENGTH

Withstands a load of 23 kN for 3 minutes each attachment element

PHYSICAL PARAMETERS

Stitching Threads - High tenacity virgin multi-filament polyester

One side snap hook PN 121 and other side end stop knot

Metal Components - High Quality Alloy Steel, Zinc Plated, free from any Sharp Edges

TEST COMPLIANCE - DYNAMIC STRENGTH

When subjected to a fall with a rigid mass of 100 kg., the braking force is less than 6 kN, and the arrest distance is less than 1.5 meter

FEATURES

Tie of Anchor line made of Polyamide Twisted Rope

Loops at other end

Strength: 38 kN

Standard: Conforms to Conforming to EN 354:2010, EN 355:2002

AVAILABLE LENGTH

Rope Dia - Ø 14 mm - 10, 20, 30, 40, 50, 60,70, 100, 150, 200 meter

STORAGE

Store Webbing sling in a dry area away from ultra violet rays

Do not store in direct / high heat or sunlight as this may distort the colour

Can be stored and transported in their original cartons to avoid corrosion due to atmospheric moisture, excessive heat or cold

MARKINGS

Manufacturers Logo, details & mailing address

Model No., Batch No., Serial No.

Year of Manufacturing

Material

Approvals & EN

Instruction Pictogram

CLEANING

Use clean piece of cloth to wipe the dust

PACKING

1 piece per Bag
