Udyogi Manual Hand Descender
Udyogi Manual Hand Descender
Couldn't load pickup availability

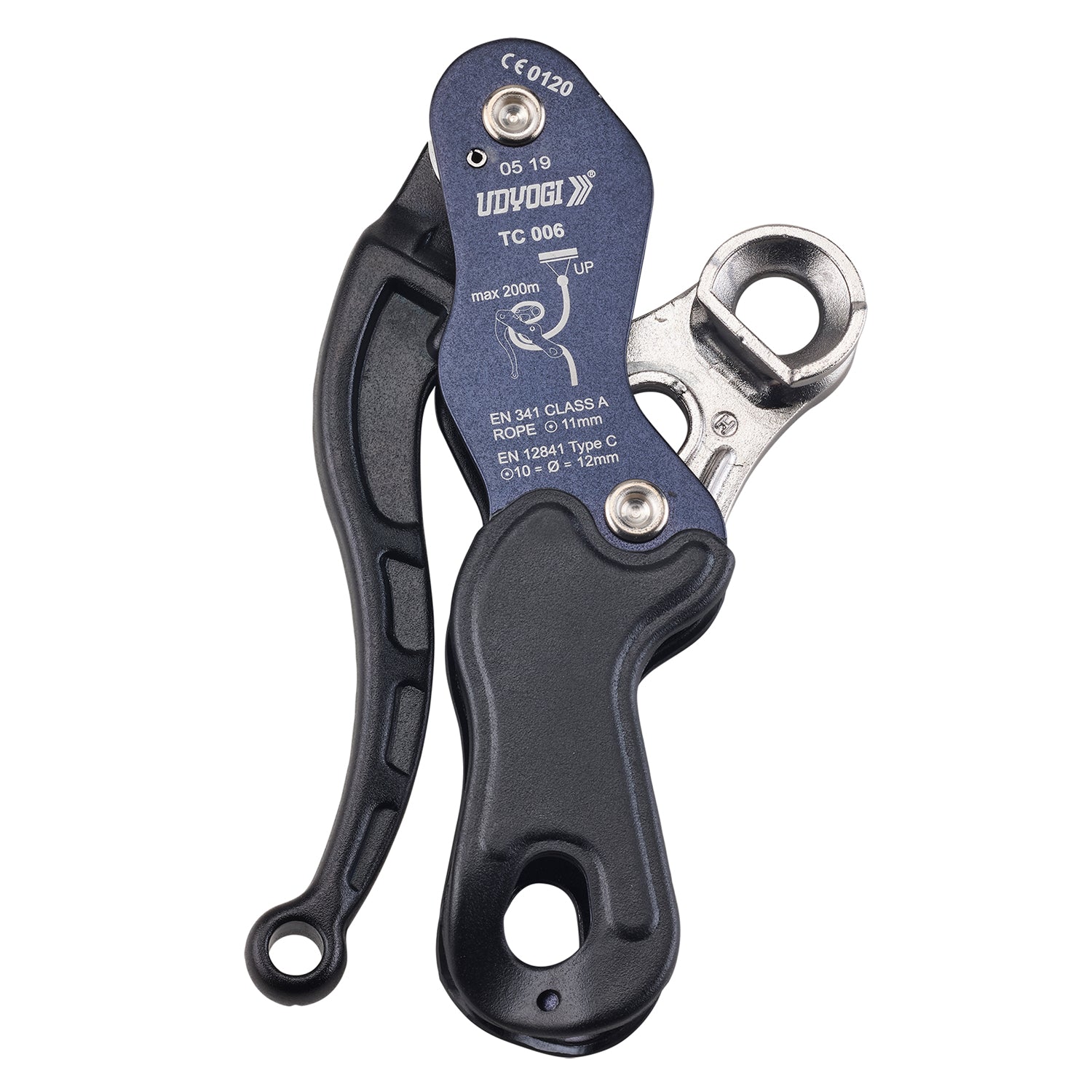

Manually operated, controlled descent device
- Application: Commonly used for suspended work positioning, self-evacuation, rescue operations
- Double stop designed for the anti-panic auto braking system
- Immediate blocks on clutching or releasing the devices
- Works on 10.5 – 11 mm Braided Rope
- Maximum working load: 150 kg
- Standard: Conforms to EN 341 – Class-A\
STANDARD : CONFORMING TO EN341 – CLASS A
|
INDUSTRY IDEAL APPLICATIONS |
|
|
Facade Cleaning |
Rescue |
|
Painting & Maintenance |
Rope Access |
|
Descending |
|
|
SPECIAL FEATURES |
|
FALL ARREST |
|
PHYSICAL PARAMETERS |
|
Light weight Aluminium body |
|
Single Action Lever to use the device |
|
Cast. design to attach carabiner to the descender |
|
MECHANICAL CHARACTERISTICS |
|
Meterial – Cast aluminium |
|
Weight – 340 gm |
|
Finish - Coloured, Anodized |
|
Use with 10.5mm Kernmantle Rope |
|
TEST COMPLIANCE - DYNAMIC STRENGTH |
|
When subjected to a fall with a rigid mass of 100 kg., the braking force is less than 6 kN, and the arrest distance is less than 1.5 m |
|
MARKINGS |
|
Manufacturers Logo |
|
Model No., Batch No., Serial No. |
|
Year of Manufacturing |
|
Material |
|
Approvals & EN |
|
Instruction Pictogram |
|
FEATURES |
|
Single Use Lever to descend makes it easy to control |
|
Equipped with a unique dual self-braking system which initiates the brake as soon as the handle is released |
|
Multipurpose use device - Can be used for self descend or assisted rescue |
|
Shape of device is designed to easily grip within the palm of the user |
|
STORAGE |
|
Store the retractable in a dry area away from ultraviolet rays |
|
Can be stored and transported in their original cartons to avoid corrosion due to atmospheric moisture, excessive heat or cold. |
