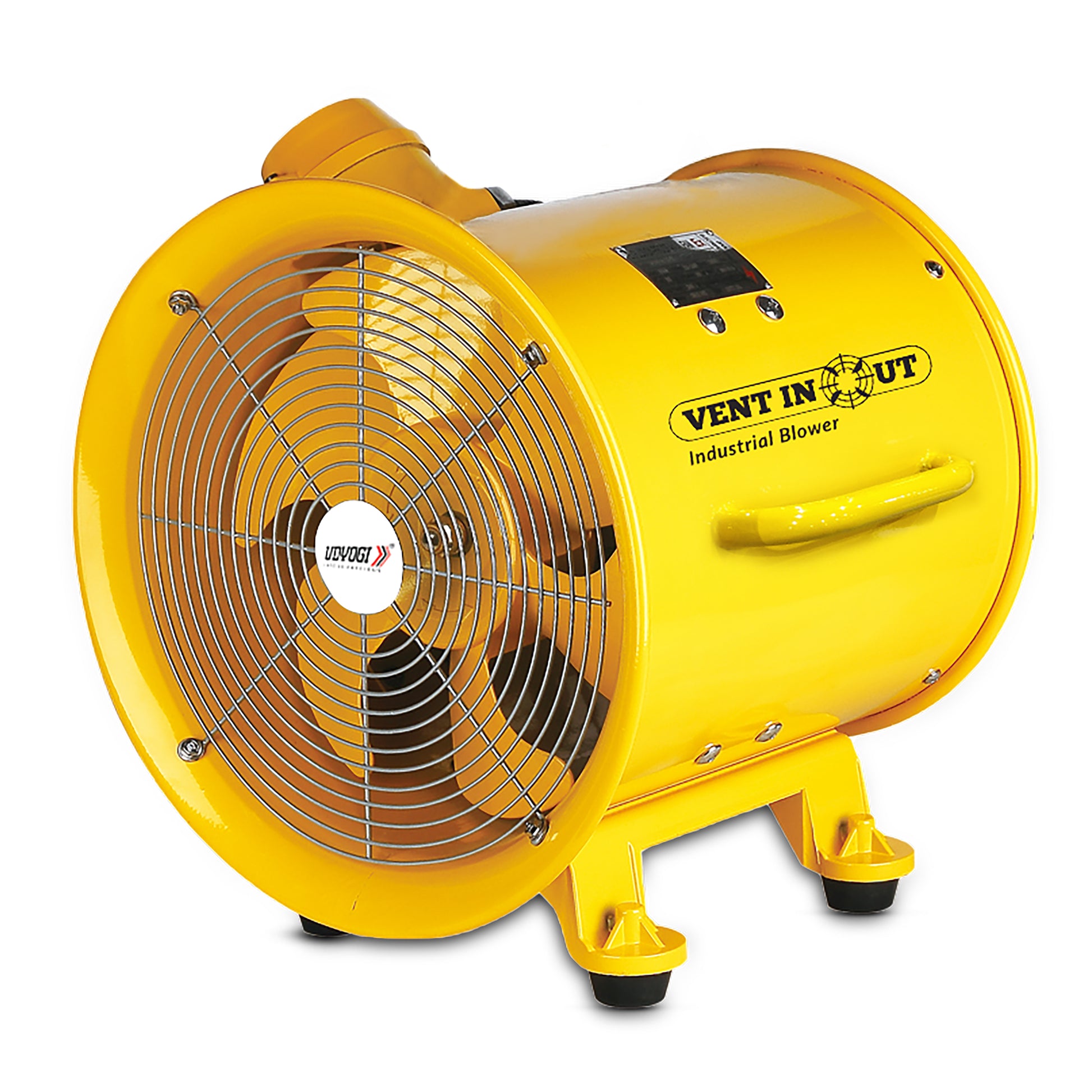

Udyogi Industrial Blower 16'' Vent in out BTF 40 400mm
Udyogi Industrial Blower 16'' Vent in out BTF 40 400mm
Couldn't load pickup availability
Complete unit epoxy powder coated in yellow
- 16-gauge armour steel sheet housing
- Silver metal-coated grill for safety
- Powered by a 1.5 hp motor
- 8 blade precision balanced heavy-duty aluminium alloy impeller
- Motor equipped with a thermal switch for overheat protection
- Attached duct at either flange for intake or exhaust ventilation
- All components are coated for greater wear resistance
- Compliance: Certified to ATEX Standard ExdIIBT4Gb
VENTINOUT BTF-40
Industrial Blower
STANDARD : Ex d IIB T4 Gb
|
INDUSTRY |
|
|
Pharmaceutical |
Construction |
|
Cement |
Oil & Gas |
|
Food & Beverage |
General Manufacturing |
|
Agrotech |
Steel & Power |
|
Petrochemical |
Marine |
|
Chemical |
Shipbuilding |
|
IDEAL APPLICATIONS |
|
Confined Space Ventilation |
|
Drying and Curing |
|
Underground Ventilation |
|
Equipment, Process & Personnel Cooling |
|
Welding Fume Exhaust |
|
Exhaust Smoke, Heat and Fire Gases |
|
VENTINOUT BTF-40 - 16” AXIAL EXPLOSION-PROOF (EX) METAL BLOWER |
|
Designed for applications requiring larger amounts of air output, the Explosion-Proof 16” (400 mm) |
|
SPECIAL FEATURES |
|
EXPLOSION PROOF PORTABLE EASY TO CARRY HEAVY DUTY LIGHT WEIGHT |
|
CONSTRUCTION |
|
Complete unit epoxy powder coated in yellow |
|
16-gauge armour steel sheet housing |
|
Silver metal coated grill for safety |
|
Powered by a 1.5 hp motor |
|
8 blade precision balanced heavy duty aluminium alloy impeller |
|
Motor equipped with thermal switch for overheat protection |
|
Attached duct at either flange for intake or exhaust ventilation |
|
All components are coated for greater wear resistance |
|
Compliance: Certified to ATEX Standard ExdIIBT4Gb |
|
DIAMETER TYPE STYLE |
|
16" (400 mm) Explosion Proof Axial Fan |
|
MOTOR VOLTAGE FREQUENCY |
|
1.5 HP 240 V 50 Hz. |
|
SPEED FREE AIR CAPACITY WEIGHT |
|
2800 RPM 3700 CFM (120 m3/min) 29 kg |
|
COLOR DIMENSIONS CERTIFICATIONS |
|
Yellow 55(L) x 49(W) x 47(H) cm ATEX: Ex d IIB T4 Gb |
|
APPLICATION |
|
Confined space fresh air supply |
|
Fume removal (degassing) |
|
Process cooling |
|
Equipment cooling |
|
Source capture fume exhaust |
|
Personnel heat stress relief |
|
Air curing and drying of paints and coatings |
|
FEATURES |
|
Dynamically designed fan housing to optimizes airflow efficiency |
|
Protective guards meeting OSHA standards |
|
Impeller is designed for high Static pressure providing higher airflow rate |
|
Equipped with four rubber feet |
|
Integrated carrying handle for easy transport |
|
ADVANTAGE |
|
Equipment cooling and personnel cooling to increase safety and improve production |
|
Reliable fresh air supply in confined spaces for comfort and safety |
|
Premium heavy-duty, continuous-operation motor |
|
Heavy-duty construction to meet industry demands |
|
Axial design and explosion-proof model |
|
STORAGE CLEANING |
|
Store in shadow, Clean with soft, dry, room temperature dry cotton cloth |
|
PACKING |
|
1 piece in a carton |
