Dynamically designed fan housing to optimizes airflow efficiency
Protective guards meeting OSHA standards
Impeller is designed for high Static pressure providing higher airflow rate
Equipped with four rubber feet
Integrated carrying handle for easy transport
Designed for applications requiring larger amounts of air output, the Explosion-Proof 12” (300 mm) Axial Blower offers a 3/4 HP single-phase motor with an efficient six-blade impeller in a rugged and lightweight metal housing. Certified to ATEX Standard ExdIIBT4Gb.
Protective guards meeting OSHA standards.
Dynamically designed fan housing to optimize airflow efficiency.
An impeller is designed for high Static pressure providing a higher airflow rate.
Equipped with four rubber feet & an integrated carrying handle for easy transport.
VENTINOUT BTF-30
Industrial Blower
STANDARD : Ex d IIB T4 Gb
INDUSTRY
Pharmaceutical
Construction
Cement
Oil & Gas
Food & Beverage
General Manufacturing
Agrotech
Steel & Power
Petrochemical
Marine
Chemical
Shipbuilding
IDEAL APPLICATIONS
Confined Space Ventilation
Drying and Curing
Underground Ventilation
Equipment, Process & Personnel Cooling
Welding Fume Exhaust
Exhaust Smoke, Heat and Fire Gases

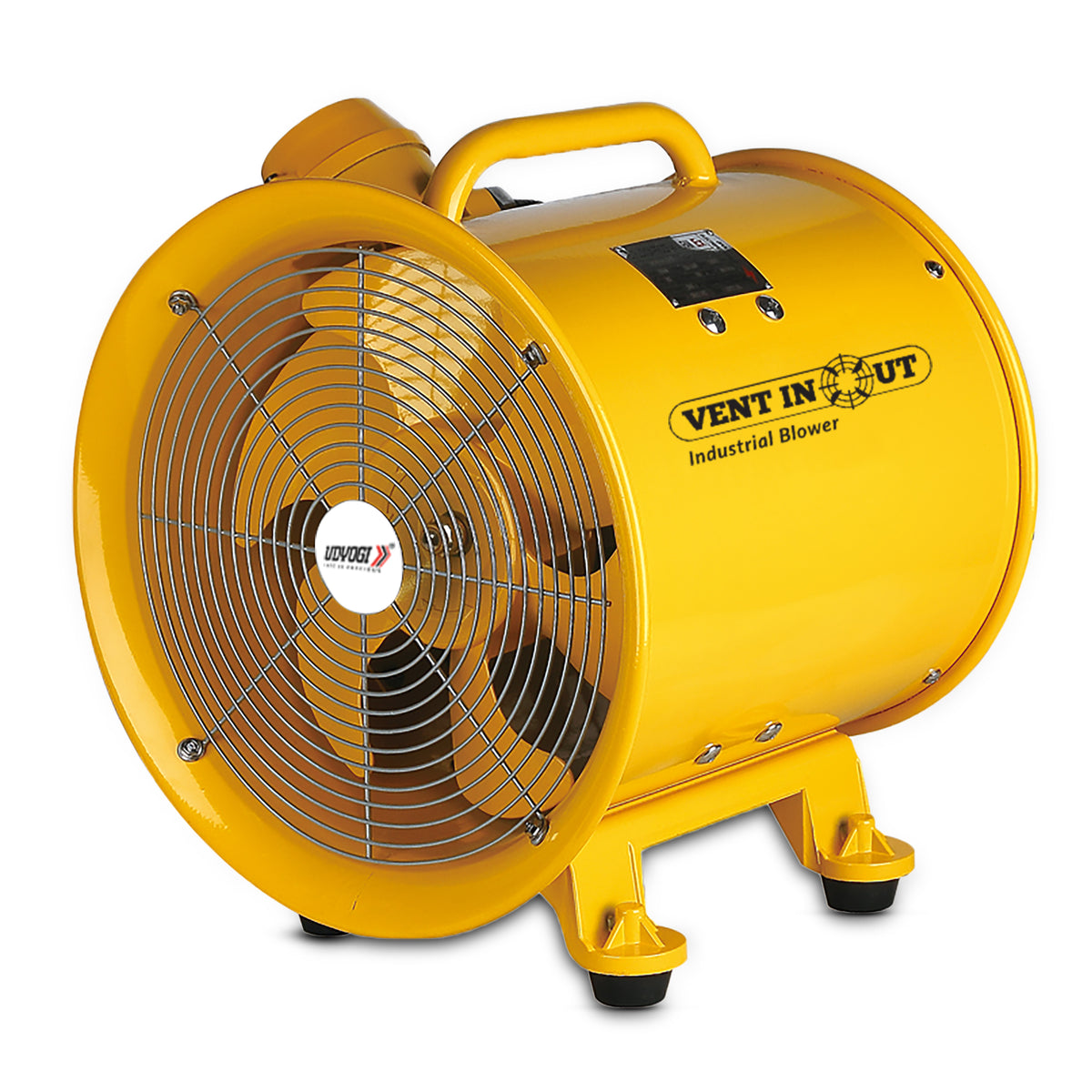

VENTINOUT BTF-30 - 12” AXIAL EXPLOSION-PROOF (EX) METAL BLOWER
Designed for applications requiring larger amounts of air output, the Explosion-Proof 12” (300 mm) Axial Blower offers a 3/4 HP single-phase motor with an efficient six-blade impeller in a rugged and lightweight metal housing. Certified to ATEX Standard ExdIIBT4Gb
SPECIAL FEATURES
EXPLOSION PROOF PORTABLE EASY TO CARRY HEAVY DUTY LIGHT WEIGHT
CONSTRUCTION
Complete unit epoxy powder coated in yellow
16-gauge armour steel sheet housing
Silver metal coated grill for safety
Powered by a 3/4 hp motor
6 blade precision balanced heavy duty aluminium alloy impeller
Motor equipped with thermal switch for overheat protection
Attached duct at either flange for intake or exhaust ventilation
All components are coated for greater wear resistance
Compliance: Certified to ATEX Standard ExdIIBT4Gb
DIAMETER TYPE STYLE
12" (300 mm) Explosion Proof Axial Fan
MOTOR VOLTAGE FREQUENCY
3⁄4 HP 240 V 50 Hz.
SPEED FREE AIR CAPACITY WEIGHT
2800 RPM 2295 CFM (65 m3/min) 16.5 kg
COLOR DIMENSIONS CERTIFICATIONS
Yellow 44(L) x 40(W) x 40(H) cm ATEX: Ex d IIB T4 Gb
APPLICATION
Confined space fresh air supply
Fume removal (degassing)
Process & Equipment cooling
Source capture fume exhaust
Personnel heat stress relief
Air curing and drying of paints and coatings
FEATURES
Dynamically designed fan housing to optimizes airflow efficiency
Protective guards meeting OSHA standards
Impeller is designed for high Static pressure providing higher airflow rate
Equipped with four rubber feet
Integrated carrying handle for easy transport
ADVANTAGE
Equipment cooling and personnel cooling to increase safety and improve production
Reliable fresh air supply in confined spaces for comfort and safety
Premium heavy-duty, continuous-operation motor
Heavy-duty construction to meet industry demands
Axial design and explosion-proof model
STORAGE CLEANING
Store in shadow, Clean with soft, dry, room temperature dry cotton cloth
