Udyogi Industrial Blower 24'' Vent in out CTF 60 600mm
Udyogi Industrial Blower 24'' Vent in out CTF 60 600mm
Bulk Requirement?
Bulk Requirement?
Contact Us Directly
Our Office Address
4624, Ajmeri Gate, Ajmeri Gate, delhi 110006
General Enquiries
info@shreeshakti.net.in
Bulk Enquiries
sales
Call Us
+91-9599206727
+91-7827854354
Our Timing
Mon - Sat : 10:00 AM - 07:00 PM
Couldn't load pickup availability
- Dynamically designed fan housing to optimizes airflow efficiency
- Protective guards meeting OSHA standards
- Impeller is designed for high Static pressure providing higher airflow rate
- Equipped with four heavy duty locking caster wheels for easy transport
- Adjustable angle for easy setup
VENTINOUT CTF-60
Industrial Blower
STANDARD :
|
INDUSTRY |
|
|
Pharmaceutical |
Construction |
|
Cement |
Oil & Gas |
|
Food & Beverage |
General Manufacturing |
|
Agrotech |
Steel & Power |
|
Petrochemical |
Marine |
|
Chemical |
Shipbuilding |
|
IDEAL APPLICATIONS |
|
Confined Space Ventilation |
|
Drying and Curing |
|
Underground Ventilation |
|
Equipment, Process & Personnel Cooling |
|
Welding Fume Exhaust |
|
Exhaust Smoke, Heat and Fire Gases |
|

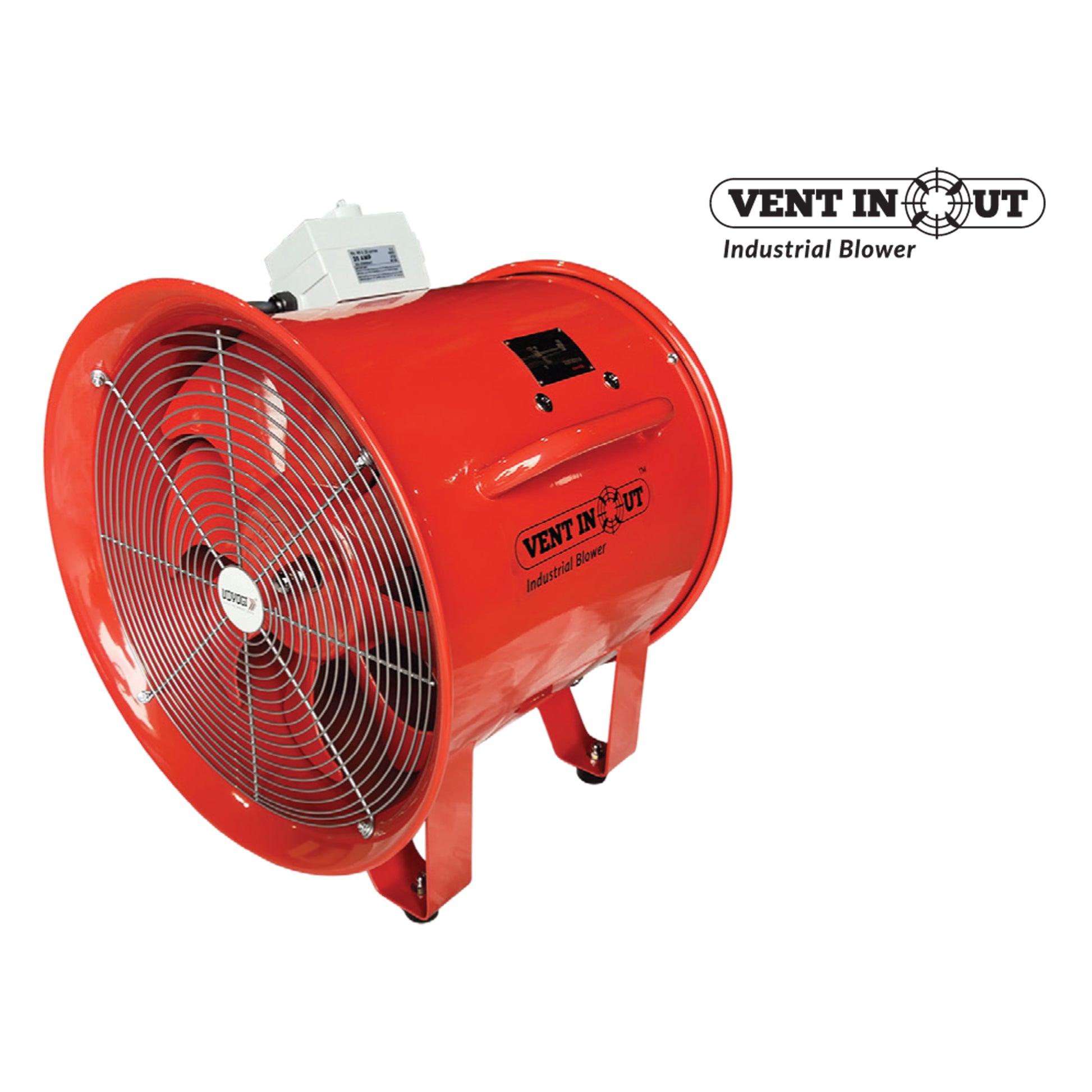

VENTINOUT CTF-60 - 24” AXIAL METAL BLOWER |
|
Designed for applications requiring larger amounts of air output, the Standard 24” (600 mm) Axial Blower offers a 3.0 HP motor with an efficient eight-blade impeller in a rugged, lightweight metal housing. Certified to CE |
|
SPECIAL FEATURES |
|
PORTABLE EASY TO CARRY HEAVY DUTY LIGHT WEIGHT |
|
CONSTRUCTION |
|
Complete unit epoxy powder coated in safety orange |
|
16-gauge armour steel sheet housing |
|
Silver metal coated grill for safety |
|
Powered by a 3.0 hp motor |
|
8 blade precision balanced heavy duty aluminium alloy impeller |
|
Motor equipped with thermal switch for overheat protection |
|
Attached duct at either flange for intake or exhaust ventilation |
|
All components are coated for greater wear resistance |
|
Compliance: Certified to CE |
|
DIAMETER STYLE COLOR |
|
24" (600 mm) Axial Fan Safety Orange |
|
MOTOR VOLTAGE FREQUENCY |
|
3.0 HP 240 V 50 Hz. |
|
SPEED FREE AIR CAPACITY WEIGHT |
|
1400 RPM 8475 CFM (240 m3/min) 67.5 kg |
|
DIMENSIONS CERTIFICATIONS |
|
84(L) x 77(W) x 58(H) cm CE |
|
APPLICATION |
|
Confined space fresh air supply |
|
Fume removal (degassing) |
|
Process cooling |
|
Equipment cooling |
|
Source capture fume exhaust |
|
Personnel heat stress relief |
|
Air curing and drying of paints and coatings |
|
FEATURES |
|
Dynamically designed fan housing to optimizes airflow efficiency |
|
Protective guards meeting OSHA standards |
|
Impeller is designed for high Static pressure providing higher airflow rate |
|
Equipped with four heavy duty locking caster wheels for easy transport |
|
Adjustable angle for easy setup |
|
ADVANTAGE |
|
Equipment cooling and personnel cooling to increase safety and improve production |
|
Reliable fresh air supply in confined spaces for comfort and safety |
|
Premium heavy-duty, continuous-operation motor |
|
Heavy-duty construction to meet industry demands |
|
STORAGE CLEANING |
|
Store in shadow, Clean with soft, dry, room temperature dry cotton cloth |
|
PACKING |
|
1 piece in a carton |
