Udyogi Industrial Blower 24'' Vent in out BTF 60 600mm

Udyogi Industrial Blower 24'' Vent in out BTF 60 600mm

Rs. 54,000.00
Rs. 54,000.00
Sale Sold out
Shipping calculated at checkout.

Bulk Requirement?

Contact Us Directly

Our Office Address

4624, Ajmeri Gate, Ajmeri Gate, delhi 110006


General Enquiries

info@shreeshakti.net.in

Bulk Enquiries

sales@shreeshakti.net.in


Call Us

+91-9599206727

+91-7827854354



Our Timing

Mon - Sat : 10:00 AM - 07:00 PM
  • Dynamically designed fan housing to
  • optimizes airflow efficiency
  • Protective guards meeting OSHA standards
  • Impeller is designed for high Static pressure
  • providing higher airflow rate
  • Equipped with four heavy duty locking caster wheels for easy transport
  • Adjustable angle for easy setup

VENTINOUT BTF-60

Industrial Blower

STANDARD : Ex d IIB T4 Gb


INDUSTRY

Pharmaceutical

Construction

Cement

Oil & Gas

Food & Beverage

General Manufacturing

Agrotech

Steel & Power

Petrochemical

Marine

Chemical

Shipbuilding

IDEAL APPLICATIONS

Confined Space Ventilation

Drying and Curing

Underground Ventilation

Equipment, Process & Personnel Cooling

Welding Fume Exhaust

Exhaust Smoke, Heat and Fire Gases
page1image1104650432

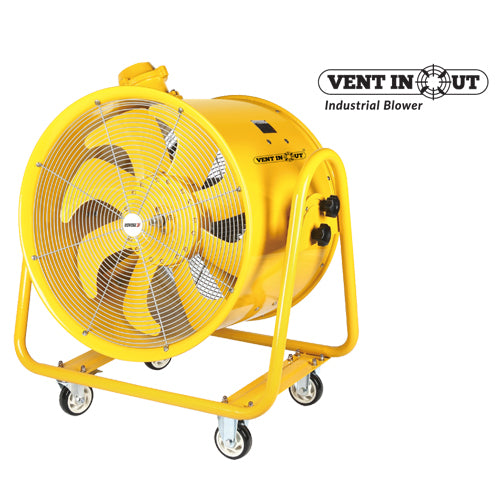

VENTINOUT BTF-60 - 24” AXIAL EXPLOSION-PROOF (EX) METAL BLOWER

Designed for applications requiring larger amounts of air output, the Explosion-Proof 24” (600 mm)
Axial Blower offers a 3.0 HP single-phase motor with an efficient eight-blade impeller in a rugged and lightweight metal housing. Certified to ATEX Standard ExdIIBT4Gb

SPECIAL FEATURES

EXPLOSION PROOF PORTABLE EASY TO CARRY HEAVY DUTY LIGHT WEIGHT

CONSTRUCTION

Complete unit epoxy powder coated in yellow

16-gauge armour steel sheet housing

Silver metal coated grill for safety

Powered by a 3.0 hp motor

8 blade precision balanced heavy duty aluminium alloy impeller

Motor equipped with thermal switch for overheat protection

Attached duct at either flange for intake or exhaust ventilation

All components are coated for greater wear resistance

Compliance: Certified to ATEX Standard ExdIIBT4Gb

DIAMETER TYPE STYLE

24" (600 mm) Explosion Proof Axial Fan

MOTOR VOLTAGE FREQUENCY

3.0 HP 240 V 50 Hz.

SPEED FREE AIR CAPACITY WEIGHT

1400 RPM 8475 CFM (240 m3/min) 65 kg

COLOR DIMENSIONS CERTIFICATIONS

Yellow 84(L) x 77(W) x 58(H) cm ATEX: Ex d IIB T4 Gb

APPLICATION

Confined space fresh air supply

Fume removal (degassing)

Process cooling

Equipment cooling

Source capture fume exhaust

Personnel heat stress relief

Air curing and drying of paints and coatings

FEATURES

Dynamically designed fan housing to optimizes airflow efficiency

Protective guards meeting OSHA standards

Impeller is designed for high Static pressure providing higher airflow rate

Equipped with four heavy duty locking caster wheels for easy transport

Adjustable angle for easy setup

ADVANTAGE

Equipment cooling and personnel cooling to increase safety and improve production

Reliable fresh air supply in confined spaces for comfort and safety

Premium heavy-duty, continuous-operation motor

Heavy-duty construction to meet industry demands

Axial design and explosion-proof model

STORAGE CLEANING

Store in shadow, Clean with soft, dry, room temperature dry cotton cloth

PACKING

1 piece in a carton
