Udyogi Industrial Blower 12'' Vent in out CTF 30 300mm
Udyogi Industrial Blower 12'' Vent in out CTF 30 300mm
Couldn't load pickup availability
- Complete unit epoxy powder coated in orange
- 16-gauge armour steel sheet housing
- Silver metal-coated grill for safety
- Powered by a 3/4 hp motor
- 6 blade precision balanced heavy-duty aluminium alloy impeller
- Motor equipped with a thermal switch for overheat protection
- Attached duct at either flange for intake or exhaust ventilation
- All components are coated for greater wear resistance
- Compliance: Certified to CE
VENTINOUT CTF-30
Industrial Blower
STANDARD :
|
INDUSTRY |
|
|
Pharmaceutical |
Construction |
|
Cement |
Oil & Gas |
|
Food & Beverage |
General Manufacturing |
|
Agrotech |
Steel & Power |
|
Petrochemical |
Marine |
|
Chemical |
Shipbuilding |
|
IDEAL APPLICATIONS |
|
Confined Space Ventilation |
|
Drying and Curing |
|
Underground Ventilation |
|
Equipment, Process & Personnel Cooling |
|
Welding Fume Exhaust |
|
Exhaust Smoke, Heat and Fire Gases |
|

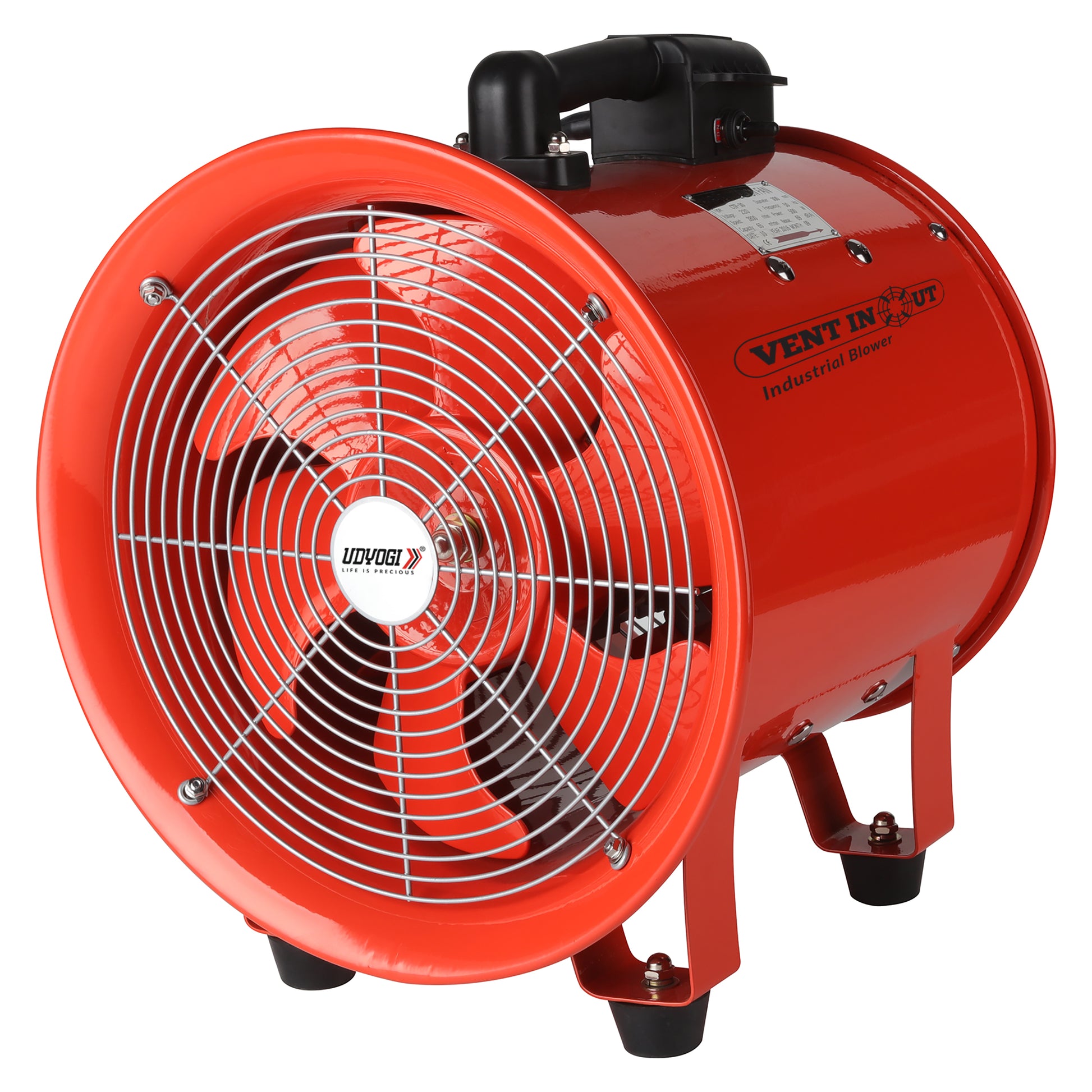

VENTINOUT CTF-30 - 12” AXIAL METAL BLOWER |
|
Designed for applications requiring larger amounts of air output, the Standard 12” (300 mm) Axial Blower offers a 3/4 HP motor with an efficient six-blade impeller in a rugged, lightweight metal housing. Certified to CE |
|
SPECIAL FEATURES |
|
PORTABLE EASY TO CARRY HEAVY DUTY LIGHT WEIGHT |
|
CONSTRUCTION |
|
Complete unit epoxy powder coated in safety orange |
|
16-gauge armour steel sheet housing |
|
Silver metal coated grill for safety |
|
Powered by a 3/4 hp motor |
|
6 blade precision balanced heavy duty aluminium alloy impeller |
|
Motor equipped with thermal switch for overheat protection |
|
Attached duct at either flange for intake or exhaust ventilation |
|
All components are coated for greater wear resistance |
|
Compliance: Certified to CE |
|
DIAMETER STYLE COLOR |
|
12" (300 mm) Axial Fan Safety Orange |
|
MOTOR VOLTAGE FREQUENCY |
|
3⁄4 HP 240 V 50 Hz. |
|
SPEED FREE AIR CAPACITY WEIGHT |
|
2800 RPM 2295 CFM (65 m3/min) 16 kg |
|
DIMENSIONS CERTIFICATIONS |
|
44(L) x 39.5(W) x 39.5(H) cm CE |
|
APPLICATION |
|
Confined space fresh air supply |
|
Fume removal (degassing) |
|
Process cooling |
|
Equipment cooling |
|
Source capture fume exhaust |
|
Personnel heat stress relief |
|
Air curing and drying of paints and coatings |
|
FEATURES |
|
Dynamically designed fan housing to optimizes airflow efficiency |
|
Protective guards meeting OSHA standards |
|
Impeller is designed for high Static pressure providing higher airflow rate |
|
Equipped with four rubber feet |
|
Integrated carrying handle for easy transport |
|
ADVANTAGE |
|
Equipment cooling and personnel cooling to increase safety and improve production |
|
Reliable fresh air supply in confined spaces for comfort and safety |
|
Premium heavy-duty, continuous-operation motor |
|
Heavy-duty construction to meet industry demands |
|
STORAGE CLEANING |
|
Store in shadow, Clean with soft, dry, room temperature dry cotton cloth |
|
PACKING |
|
1 piece in a carton |
