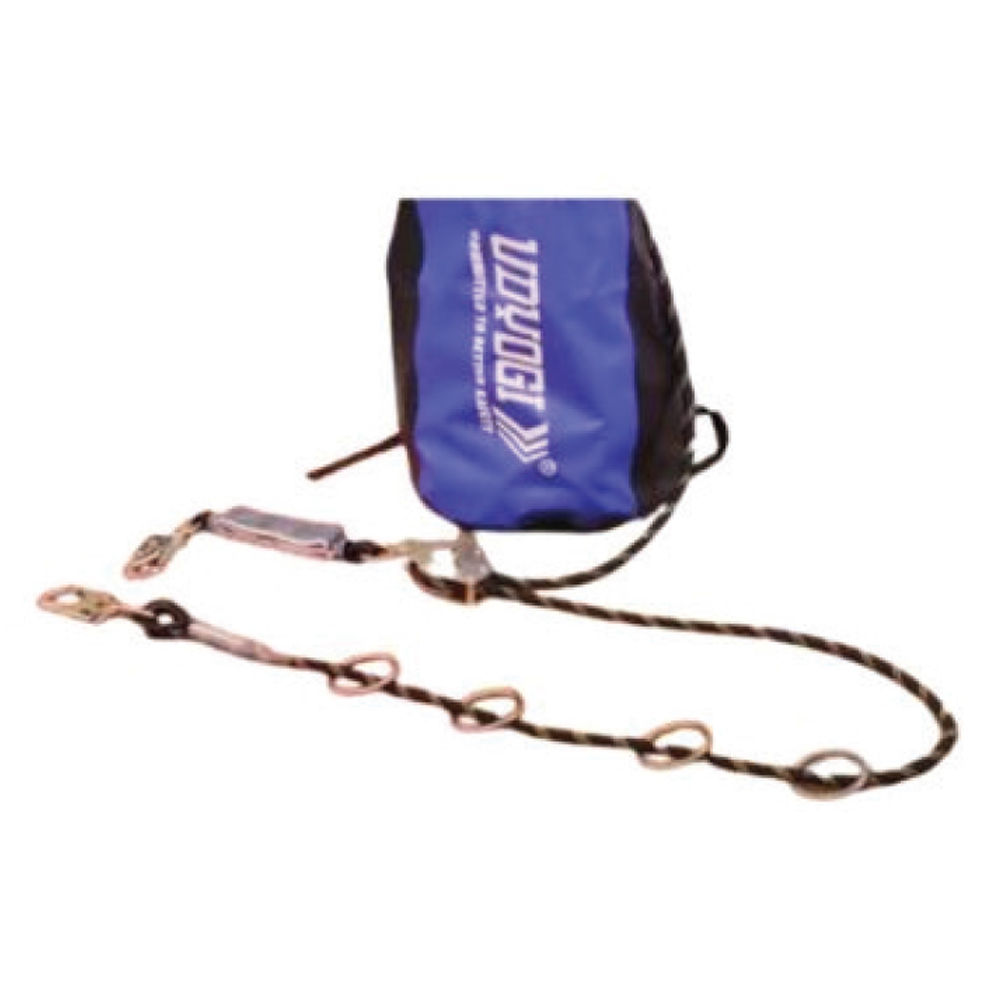

Udyogi HLL 04 Temporary Anchorage & Lifeline

HLL 04
Temporary Anchorage & Lifeline
STANDARD : CONFORMING TO EN795:2012 Class B/C CEN/TS16415

• Rope Material:16mm Braided Rope
• Breaking strength: 30 kN
• Lifeline made of kernmantle rope with usage indictor.
• Alloy Steel Ratchet tensioners rated for 50kN load.
• Equipped with a Ratchet Tensioner for quick and easy tensioning of the lifeline between two supports.
• Consists of 4 anchor rings on the lifeline for users to connect their lanyard.
• Lever for Ratchet tensioner to easily tension the lifeline.
• Complete kit includes retaining bag and two tie-off anchor slings.
• Available Length: 20 meter

INDUSTRY
IDEAL APPLICATIONS
SPECIAL FEATURES
Construction
Working at Height
ANCHOR
Telecom
Fall Arrest
Transmission
Creating Temporary Anchorage
LIGHT WEIGHT
PHYSICAL PARAMETERS
Rope Material
16mm Braided Rope
Breaking strength
30 kN

FEATURES
AVAILABLE LENGTH
20 meter
Lifeline made of kernmantle rope with usage indictor.

Alloy Steel Ratchet tensioners rated for 50kN load.
Equipped with a Ratchet Tensioner for quick and easy
tensioning of the lifeline between two supports.
Consists of 4 anchor rings on the lifeline for users to
connect their lanyard.
Lever for Ratchet tensioner to easily tension the lifeline.
Complete kit includes retaining bag and two tie-off
anchor slings.
