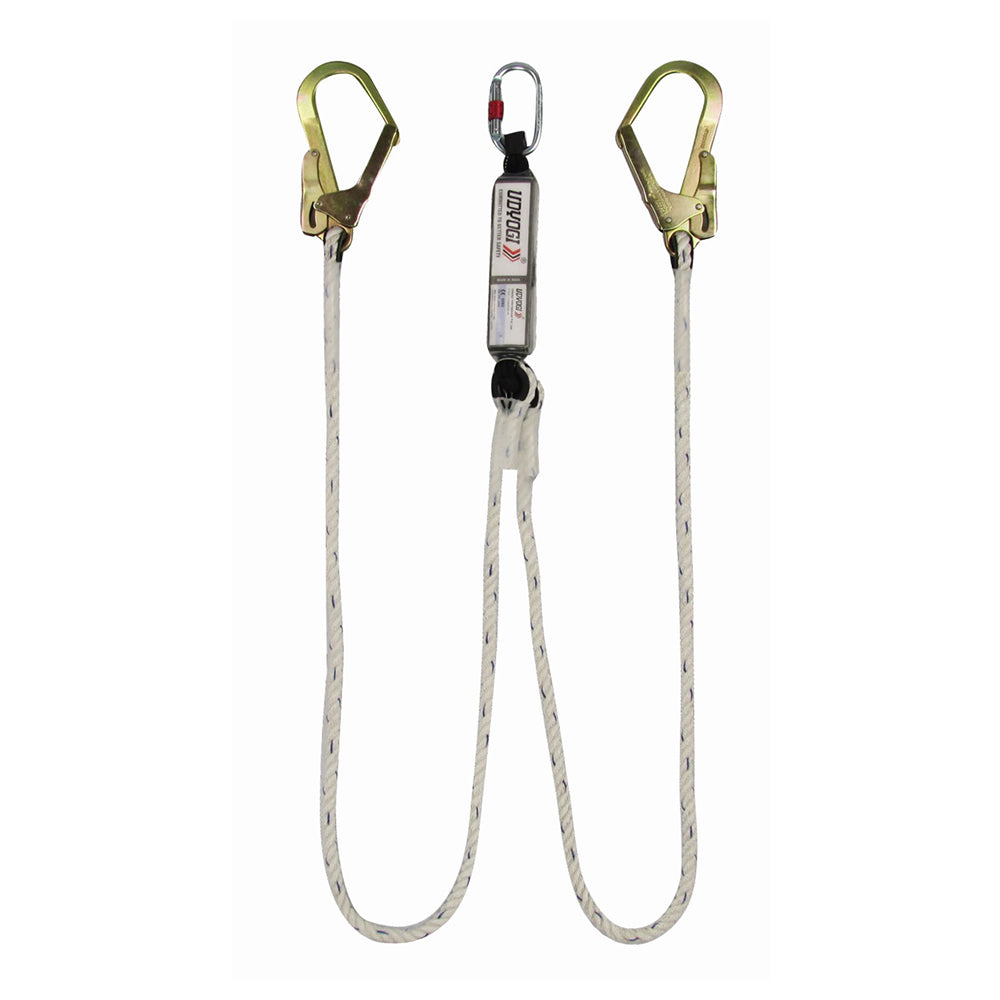

Udyogi Energy Absorbing Double Polyester Rope Lanyard RL 22

STANDARD: CONFORMING TO EN 354:2010, EN 355:2002

INDUSTRY IDEAL APPLICATIONS

Construction

Work at Height

Metals & Mining

Ladder Climbing

Fall Arrest

Transmission

Rescue

SPECIAL FEATURES ROPE MATERIAL WEIGHT

LIGHT WEIGHT FALL RESTRAINT

12 mm Polyester 1.90kg Rope

BREAKING STRENGTH LANYARD LENGTH

STITCHING THREAD

23kN (Min)

2 meter (Hook to hook) High Tenacity Virgin Multifilament Polyester

STITCHING THREAD

High Tenacity Virgin Multifilament Polyester

With a force of 15 kN, the fully developed energy absorber shall withstand the static strength test without tearing
or rupture.

MECHANICAL CHARACTERISTICS

Minimum Static strength of lanyard 22 kN

Maximum dynamic load – 6 kN

Maximum Fall arrest distance – 5.75 meter

TEST COMPLIANCE - DYNAMIC PERFORMANCE

The test shall be conducted with a rigid steel mass of 100 kgs, raising the mass to its maximum height and without using an additional chain lanyard. The fall arrest force F max shall not exceed 6 kN, the arrest distance

H shall not exceed 5.75 meter.

Maximum capacity 100 kg (For the use of single user only)

Maximum Carabiner 308 gate opening – 18 mm

FEATURES

Maximum SH-60 hook gate opening – 55 mm

Energy Absorbing Double Polyester Rope Lanyard with available length of 1.5 meter, 1.8 meter, 2 meter

On absorber side connected with EASY 308 carabiner and on other side connected with two EASY SH 60

Scaffolding Hooks
