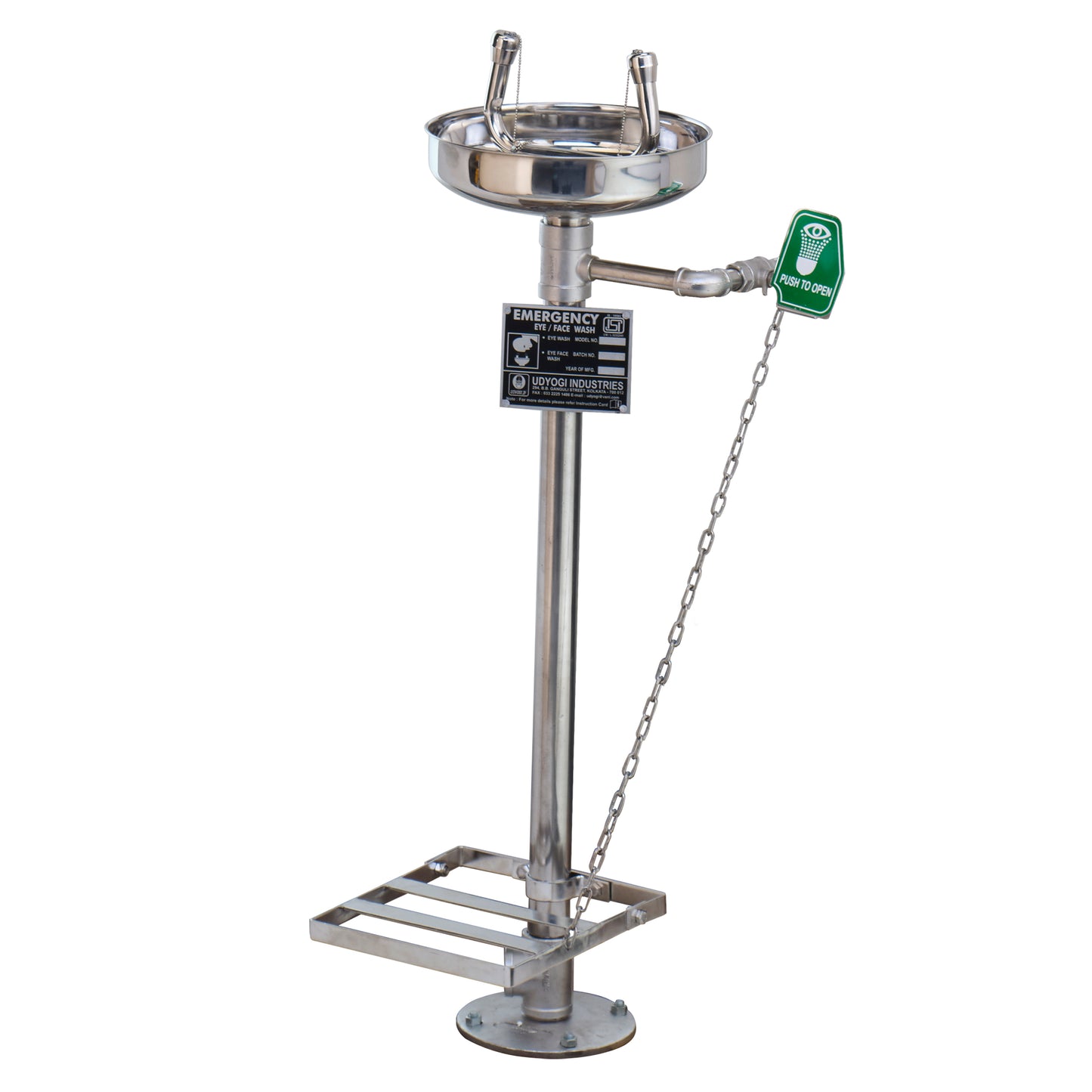

Udyogi Emergency Eye/Face Wash 4710 SS Fountain with Pedal
Udyogi Emergency Eye/Face Wash 4710 SS Fountain with Pedal
Couldn't load pickup availability
- Water inlet connections of 1/2’’ NB for eye / face wash
- Water outlet connection – 1¼” NB
- Eye wash discharge rate – 12 lpm. (minimum)
- Receptor bowl attached for minimize wastage of water
- With foot pedal for hands free operation to supply and control water flow through eye wash heads
4710 SS
Eye / Face Wash Fountain
STANDARD: IS 10592:2018 Meets ANSI Z358.1
|
SPECIAL FEATURES |
||
|
STAINLESS STEEL/ ANTI CORROSIVE |
HIGH DELUGE ACTION |
EASY OPERATION |
|
EASY MAINTENANCE |
FIRST AID AIDING EQUIPMENT |
DECONTAMINATION UNIT |
|
INDUSTRY |
|
Food / Steel |
|
Chemical / Mining |
|
Pharma |
|
Laboratories |
|
Automobile |
|
IDEAL APPLICATIONS |
|
Corrosive Environment |
|
Battery charging areas |
|
Spraying operations |
|
Against Acid / Chemical Spillage |
|
Dipping operations |
|
Hazardous substances dispensing areas |
|
EYE WASH BOWL |
|
SS 304 bowl resistant to damage from most acid, alkali and oil |
|
Size of SS Bowl 290 ± 3 mm |
EYE / FACE WASH FOUNTAIN
Eye wash fountain head is between
38''- 42'' (96 cm-106 cm) above floor surface
|
EYE WASH HEAD |
|
Two high-flow sprays, operated at low pressure, which washes the eye and face |
|
Anti-dust cover protects the head from airborne contaminants and automatically opens with water pressure |
|
Distance between two eye wash head is 140 to 200 mm as per standard |
BASE PLATE
To hold the shower structure in a stable position
Udyogi
PUSH TO OPEN VALVE
1⁄2” BSP SS Ball valve connects units to uninterruptible water supply as per requirements
FOOT PEDAL
For easy supply and control of water flow in the eye wash head without use of hand
Diameter of the base plate 180 ± 3 mm
