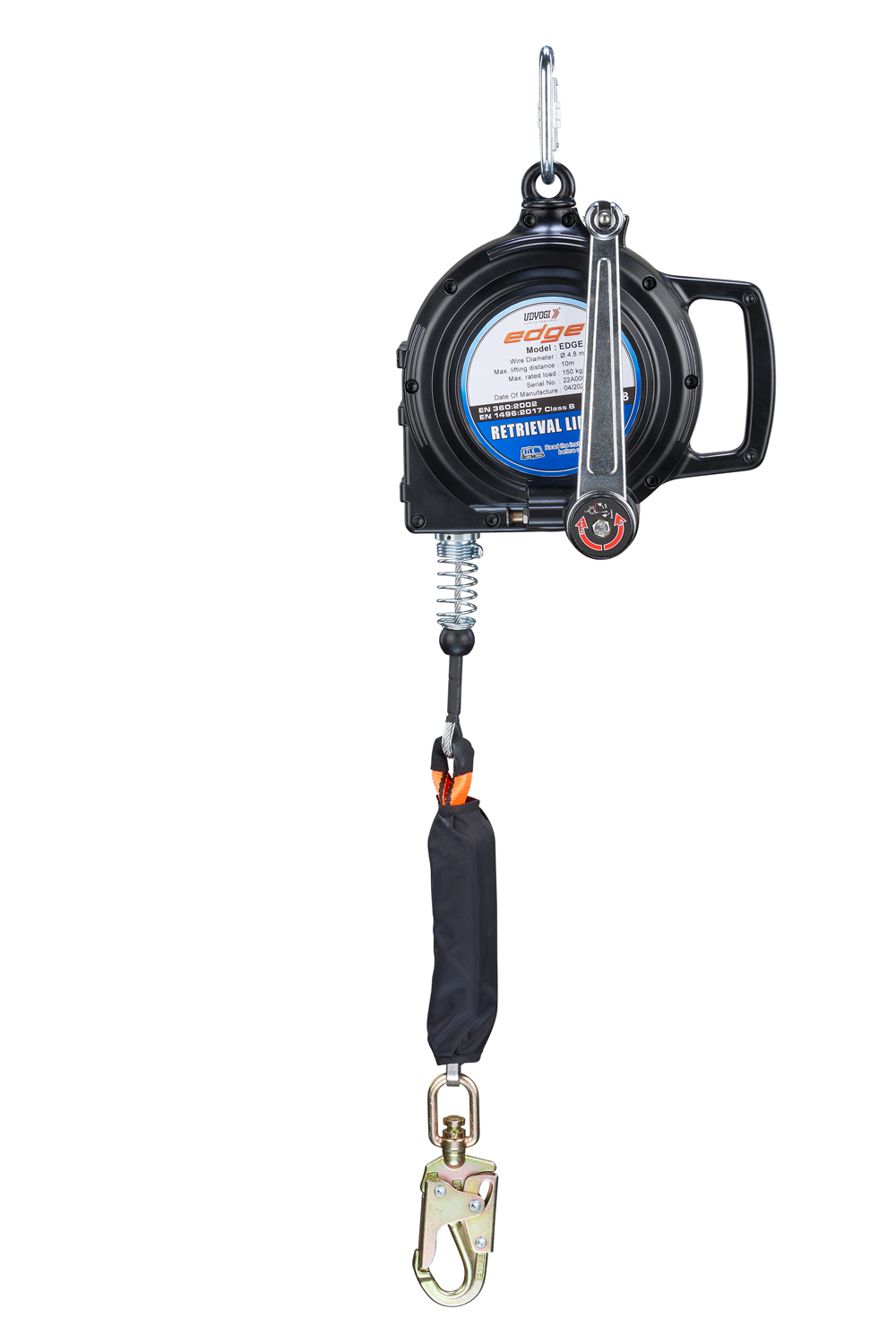

• With release pin and two-way winding handle, to engage rescue/recovery mode
• Fixed handle anchor attachment point
• Attachment/connection handle or can be fitted to a davit or tripod via a bracket
• Maximum load capacity 150 kg
• Aluminium double action hook on end of lifeline

MECHANICAL CHARACTERISTICS
PHYSICAL PARAMETERS
Breaking Strength - 25 kN
Swivel Snap Hook & EASY 308 Carabiner
Casing - Aluminium
Swivel snap hook
Breaking Force - Less than 6 kN
Snap hook equipped with fall indicator
and swivel action
Fall Arrest Distance -
200mm – 250mm (Maximum)
AVAILABLE LENGTH
Temp. Range - −30°C to 50°C
10, 15, 20 & 30 meters
RETRACTABLE LANYARD
TEST COMPLIANCE - STATIC STRENGTH
Material - Galvanised steel rope
Diameter – Φ 4.8 mm
Rope Length – 10, 15, 20 & 30 meters
When subjected to a fall with a rigid mass
of 150 kg., the braking force is less than
6 kN, and the arrest distance is
200mm – 250mm (Max)
Breaking Strength - Greater than 25 kN
