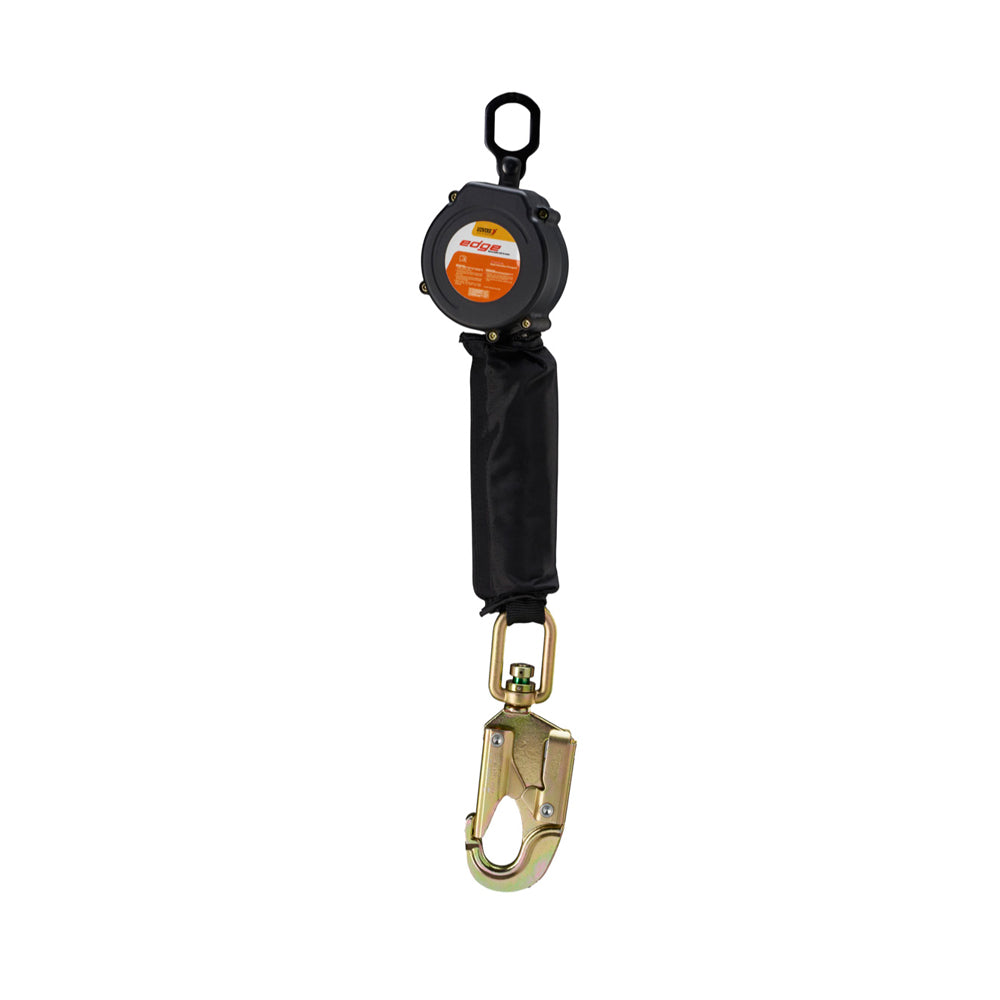

Udyogi Edge Nano 1.8 meters (Snap Hook) Retractable Fall Arrestor
Udyogi Edge Nano 1.8 meters (Snap Hook) Retractable Fall Arrestor
Bulk Requirement?
Bulk Requirement?
Contact Us Directly
Our Office Address
4624, Ajmeri Gate, Ajmeri Gate, delhi 110006
General Enquiries
info@shreeshakti.net.in
Bulk Enquiries
sales
Call Us
+91-9599206727
+91-7827854354
Our Timing
Mon - Sat : 10:00 AM - 07:00 PM
Couldn't load pickup availability
STANDARD : EN360:2002, ANSI Z359.14-2021, IS 3521(Part 3):2021
Quick Info
- Extremely Compact, durable and light weight
- High capacity external shock absorber
- Quick-action braking system
- High strength anti corrosion components
- Max Fall Arrest Force : 6 kN (max.)
- Safe Working Load : 140 kg
- Length : 1.8 m
EDGE NANO Retractable Block
STANDARD : EN360:2002, ANSI Z359.14-2021, IS 3521(Part 3):2021
|
INDUSTRY IDEAL APPLICATIONS |
|
|
Construction |
Working at Height |
|
Process plants |
Ladder Climbing |
|
Grinding Unit |
Loading/Unloading point |
|
Manufacturing Unit |
Bag House and vessels maintenance |
|
MECHANICAL CHARACTERISTICS |
|
Webbing Material : UHMWPE Material (Ultra high molecular weight Poly Ethylene). |
|
Static Strength: 20 kN |
|
Average force less than : 4 kN |
|
Fall Arrest Distance : 42 inch (Max.) |
|
Fall Arrest Force : 6 kN (Max.) |
|
Safe Working Load : 140 kg |
|
Free fall distance : 0.6 m (Max.) |
|
Length : 1.8 m |
|
Weight : 1.295 kg |
|
STORAGE |
|
Store the retractable in a dry area away from ultraviolet rays |
|
Can be stored and transported in their original carton to avoid corrosion due to atmospheric moisture, excessive heat or cold |
|
MARKINGS |
|
Manufacturers Logo, details & mailing address |
|
Model No., Batch No., Serial No. |
|
Year of Manufacturing |
|
Material |
|
Instruction Pictogram |
|
CLEANING |
|
Use clean piece of cloth to wipe the dust |
|
PACKING |
|
1 piece per box |
FEATURES
SPECIAL FEATURES
FALL ARREST
Has a Swivel Snap hook at one end and Swivel top to connect.
STRONG
LIGHT WEIGHT
Extremely Compact, durable and light weight.
High capacity external shock absorber with impact indicator.
Quick-action breaking system.
High strength anti corrosion components.
Combination of an energy absorbing unit, with connector. Connector opening 18 mm.
Make of durable & light weight the lifeline made of webbing material.
