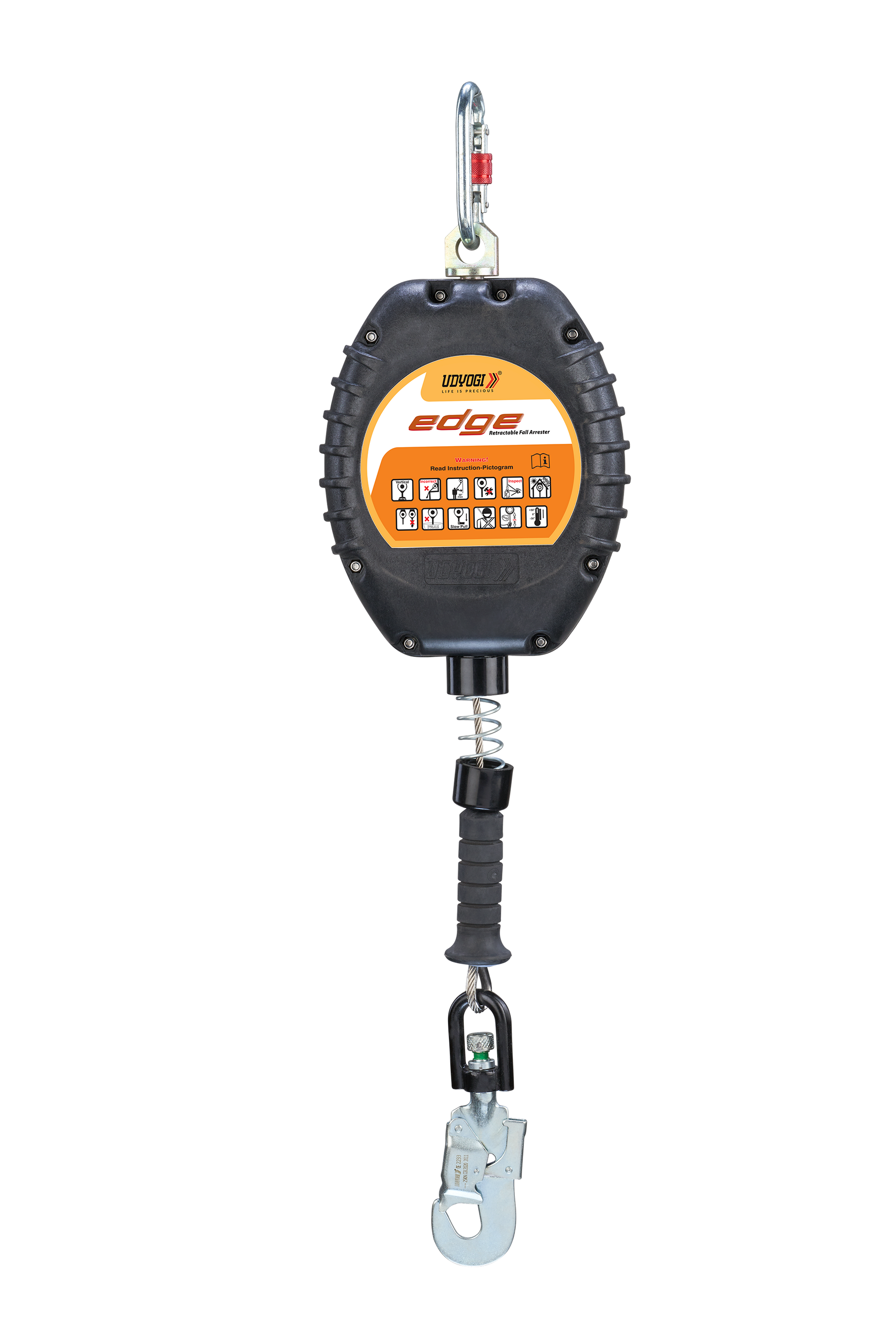

Udyogi Edge Fall Arrester Retractable Block - 12 Meters

 Fall arrester for working at height.

• Fall Arrest Distance – 1.5 m (Maximum)
• Retractable Galvanized Steel Rope Lanyard
• Breaking Strength – 15 KN
• Braking Force – Less than 6 KN
• High Impact resistance Polyamide casing
• In case a fall occurs, the automatic braking system in the block immediately arrests the fall.

STANDARD : CONFORMING TO EN 360:2002 0082
INDUSTRY IDEAL APPLICATIONS
Construction Working at Height
Process plants Ladder Climbing
Grinding Unit Loading/Unloading point
Manufacturing Unit Bag House and vessels maintenance
SPECIAL FEATURES
FALL ARREST STRONG
MECHANICAL CHARACTERISTICS
Breaking Strength - 15 kN
Breaking Force - Less than 6 kN
Fall Arrest Distance - 2 meter(Maximum)
Temp. Range - −30°C to 50°C
PHYSICAL PARAMETERS
Robust & durable casing made
from high impact glass field nylon
Has a swivel anchorage eye at one end
Snap hook equipped with fall
indicator and swivel function
RETRACTABLE LANYARD
Material - Galvanized Steel rope
Diameter - Φ5.0 mm
Breaking Strength - Greater than 15 kN
TEST COMPLIANCE - DYNAMIC PPERFORMANCE TEST
When subjected to a fall with a rigid mass of 140 kg., the breaking force is
less than 6 kN, and the arrest distance is less than 2 meter
FEATURES
Wire rope type retractable fall arrester
High Impact resistance polyamide casing
Galvanized steel rope with swivel snap hook
system in the block immediately arrests the fall
Included nylon rope
Maximum load capacity: 140 kg
MARKINGS
Manufacturers Logo, details & mailing address
Model No., Batch No., Serial No.
Year of Manufacturing
Material
Instruction Pictogram
MODEL ROPE LENGTH WEIGHT
EDGE 5 5 meter 3.75kg
EDGE 6 6 meter 3.84kg
EDGE 7 7 meter 3.93kg

EDGE 10 10 meter 5.70kg
EDGE 12 12 meter 5.83kg

EDGE 15 15 meter 7kg

STORAGE
Store the retractable in a dry area away
from ultraviolet rays
Can be stored and transported in their original
cartons to avoid corrosion due to atmospheric
moisture, excessive heat or cold
CLEANING PACKING
Use clean piece of 4 pieces per carton
cloth to wipe the dust
