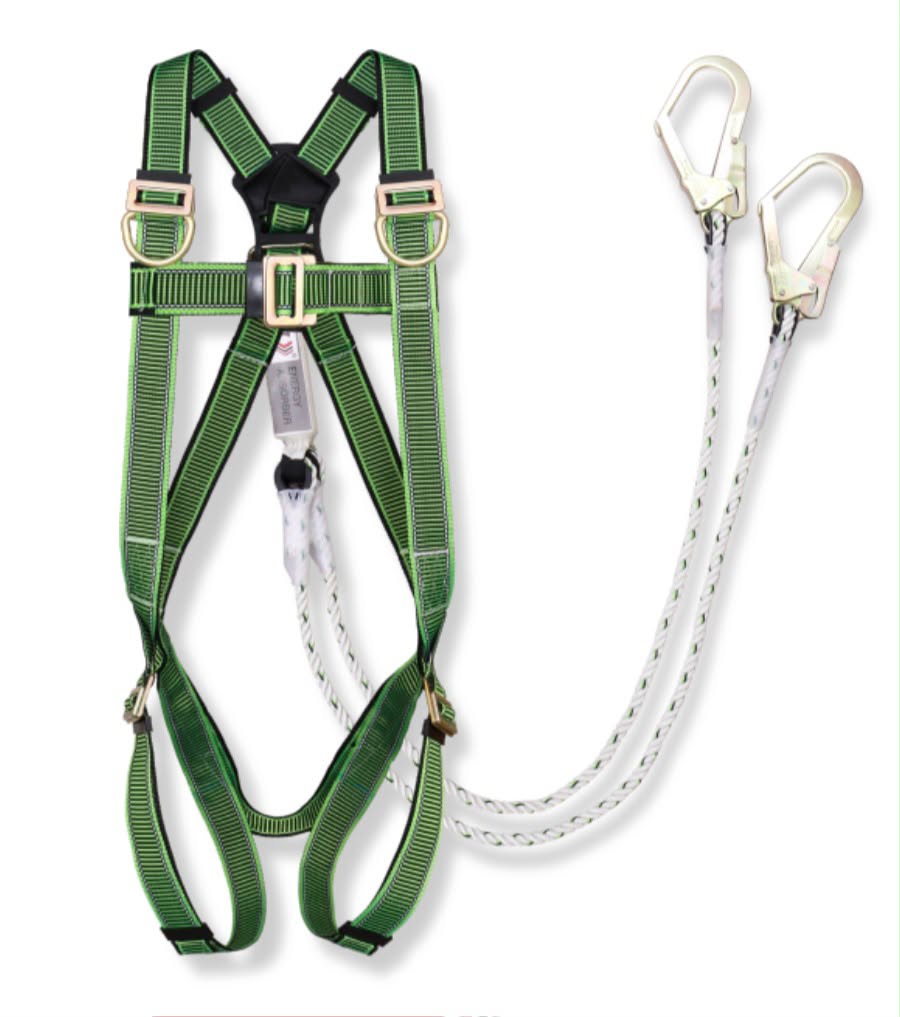

Udyogi Eco 3 Safety Harness With Shock / Energy Absorber Polyamide Rope

Udyogi Eco 3 Safety Harness With Shock / Energy Absorber with 2 d rings in front

STANDARD: IS 3521(Part 1): 2021, IS 3521(Part 2): 2021, IS 3521(Part 5): 2021

• Webbing Material : Synthetic Fibre (Polyester)
• Webbing Width : 44 +/-1 mm
• Webbing Breaking Strength : 23 kN
• Safe Working Load Capacity : 100 kg
• The harness comes with one dorsal D-ring and sternal D-ring on for fall restraint.
• Available with fully adjustable straps at shoulders, chest and thighs.
• Built in dual colour Reflective liner type webbing for easy orientation

TECHNICAL DATASHEET
FULL BODY SAFETY HARNESS WITH ENERGY ABSORBING
ECO3 LANYARD AND SCAFFOLDING HOOK
 Full Body Harness
 STANDARD: IS 3521(Part 1): 2021, IS 3521(Part 2): 2021,
IS 3521(Part 5): 2021
 Product Introduction:
 Udyogi full body harness is a safety harness that connects the
worker to the fall protection system anchored into the structure
they are working on. It is designed to safeguard the user from
injury or fatal incident.
 The safety harness is securely attached to a shock-absorbing
lanyard, which serves to regulate deceleration and prevent
potentially severe G-force injuries upon reaching the end of the
rope.
 By donning the harness, the risk of injury resulting from a fall is
significantly diminished. The harness enables the user to secure
themselves to a stationary object, thereby ensuring that they will
not come into contact with the ground in the event of a potential
fall.
 Features:
 The harness comes with one dorsal D-ring and two sternal D-rings
for fall restraint.
 Available with fully adjustable straps at shoulders, chest and thighs.
 In built Fall Indicator to facilitate easy inspection in case a fall has
occurred ever
 Attached with double high strength light weight Energy Absorbing

lanyard with scaffolding hook
 Built in dual colour Reflective liner type webbing for easy
orientation

Product Specifications:
Model : ECO3
Webbing Material : Synthetic Fibre (Polyester)
Webbing Width : 44 +/-1 mm
Webbing Breaking Strength : 23 kN
Safe Working Load Capacity : 100 kg
Stitching Thread Material : High tenacity virgin multifilament polyester
Stitch Thread Colour : White
Metal Components : High quality alloy steel, zinc plated, free
 from any sharp edges
Harness Colour : Black and Green with dual reflective lines
Lanyard Materials : Polyamide/Braided
Weight : 1.2 kg Approx. (Only Harness)

Benefits:
 Protection from Falls: A safety
harness is an essential tool in
preventing the workers from fatal
accidents such as falling to the
ground from working at height in
workplaces.
 Reduce the risk of injuries: The
harnesses distribute wearers’
weight evenly, reducing the
pressure on their back, legs, and
feet, and can also help to prevent
falls.
 Reflective webbing: The high
visibility of the webbing speeds
up the rescue efforts and protect
workers from horrible collisions.
 Energy Absorber: A lanyard
needs a shock absorber when it
will be used for fall arrest as it
helps to absorb the kinetic energy
that is created immediate after a
freefall.

Applications:
 Fall Arrest: Fall arrest harnesses are designed for use in situations involving elevated heights, where workers
are exposed to hazards that may involve a free fall. These harnesses, which are a crucial component of personal
protective equipment (PPE), typically feature a back dorsal D-ring, which is a critical component of the harness's
safety design.
 Working at Height: Harnesses are used whilst working at heights, they are secured to an anchor point for
preventing falls from heights that can result in serious injuries and even fatalities, the safety harness is one of
the most effective ways to prevent them

Safety Information:
 Energy absorbing lanyard should be used together with Full Body Harness as connecting subsystem in PFAS
 as per latest IS standard.
 Users of fall-protection equipment should not exceed 100 kg of total mass (including tools and equipment).

 Usage Instruction:
 Inspection: Harnesses should be inspected in every 6 months’ interval. Damaged or defective harnesses
 should be discarded from service immediately after inspection.
 Storage:
 Always harness should be stored in a dry area away from ultra violet rays. It Should not store in direct /
 high heat or sunlight as this may distort the colour. The sling can be stored and t
