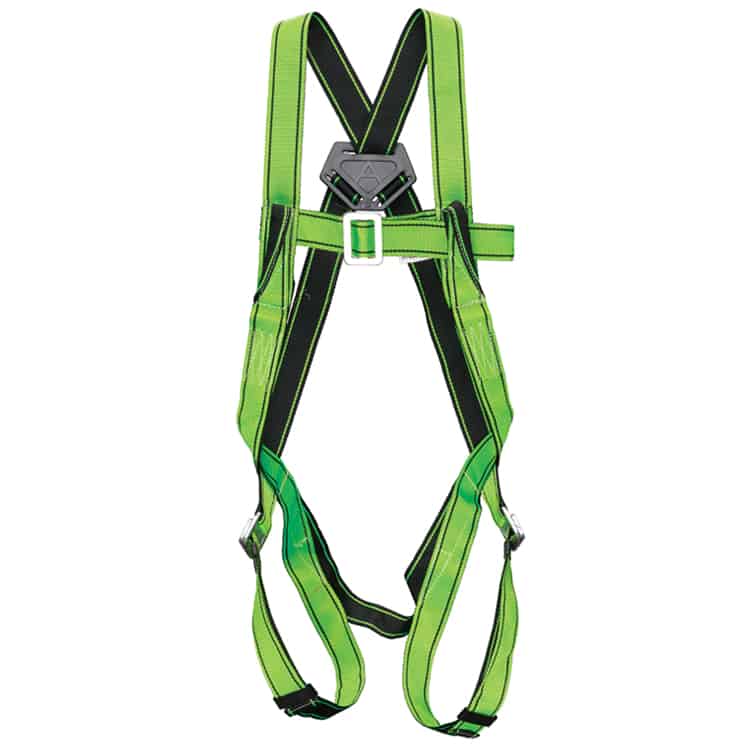

Udyogi Safety Harness Safety Belt With Shock Absorber Eco 1 SHAB (Pack of 10)

INDUSTRY IDEAL APPLICATIONS

Construction

Working at Height

-

Fall Arrest

-

Ladder Climbing

SPECIAL FEATURES

FALL ARREST

RESTRAINT

CLIMBING

CLASS-A

CLASS-L

WEBBING MATERIAL WEBBING WIDTH

Polyester 44 +/- 1 mm

WEBBING BREAKING STRENGTH

22kN (Min)

STITCH THREADS MATERIAL STITCH THREADS COLOUR

High tenacity virgin White multifilament polyester

METAL COMPONENTS HARNESS COLOUR WEIGHT

High quality alloy steel, zinc plated, free from any sharp edges.

Black with green lines

950 grams

TEST COMPLIANCE - Static Strength

Tested at each attachment element with a force of 15 KN applied for 3 min.

TEST COMPLIANCE - Dynamic Strength

When tested at each Fall Arrest Attachment element with a torso dummy of 100 Kg mass, the full body harness withstands drop tests with a free fall distance of 4 mtr

FEATURES

One dorsal D-ring for fall arrest

One sternal D-ring on chest for fall restraint

Size adjustment straps only at chest and thighs

Ideally positioned sit-strap for extended comfort

Fall Indicator: A fall indicator system with tag provided to ensure easy notice when a fall occurred & subsequent discarding of the PPE. Fall indicator tag located below the back plate to the back side of both the shoulder straps.

MARKINGS

Manufacturers Logo, details & mailing address

Model No., Batch No., Serial No.

Year of Manufacture

Material

Approval & IS marking

Instruction Pictogram

STORAGE

Store the harness in a dry area away from ultraviolet rays.

Do not store in direct/ high heat or sunlight as this may distort the colour.

Can be stored and transported in their original cartons to avoid corrosion due to atmospheric moisture, excessive heat or cold.

CLEANING

Use Clean piece of cloth to wipe the dust

PACKING

10 pieces per carton
