Udyogi
Regular price
Rs. 5,500.00
Regular price
Sale price
Rs. 5,500.00
Unit price
/
per
Couldn't load pickup availability
STANDARD: IS 10592:2018
Meets ANSI Z358.1
- Water inlet connections of 1/2’’ NB
- Water outlet connection – 1¼” NB
- Eye wash discharge rate – 12 lpm. (minimum)
- Manually operated valve for hazel free usage
- Receptor bowl attached for minimize wastage of water
- With foot pedal for hands free operation to supply and control water flow through eye wash heads
- GI Wall bracket for mounting the shower on the walls
|
|

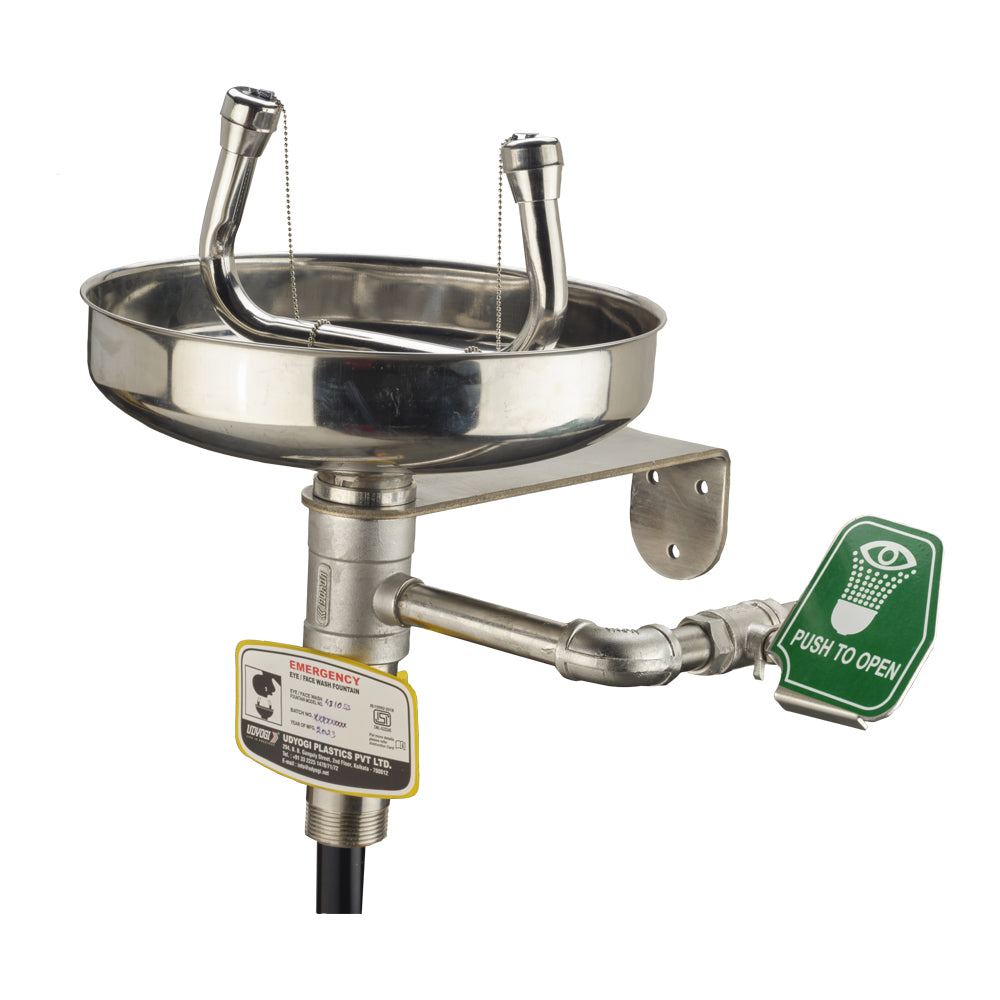

4810 SS
Eye / Face wash wall mounted
STANDARD: IS 10592:2018 Meets ANSI Z358.1
|
|
|
|
|
|
|
|
Against Acid / Chemical Spillage
|
|
|
Hazardous substances dispensing areas
|
|
|
STAINLESS STEEL/ ANTI CORROSIVE
|
|
|
|
FIRST AID AIDING EQUIPMENT
|
|
|
|
SS 304 metal bowl resistant to damage from most acid, alkali and oil
|
Size of SS Bowl 290 ± 3 mm
|
EYE / FACE WASH FOUNTAIN
Eye wash fountain head shall be within 38''- 42'' (96 cm-106 cm) above floor surface as per standard
|
|
Two high-flow sprays, operated at low pressure, which washes the eye and face
|
Anti-dust cover protects the head from airborne contaminants and automatically opens with water pressure
|
Distance between two eye wash head is 140 to 200 mm as per standard
|
PUSH TO OPEN VALVE
1⁄2” BSP SS Ball valve connects units to uninterruptible water supply as per requirements
|
|
|
Water inlet connections of 1/2’’ NB
|
Water outlet connection – 11⁄4” NB
|
Eye wash discharge rate – 12 lpm. (minimum)
|
Manually operated valve for hazel free usage
|
Receptor bowl attached for minimize wastage of water
|
With foot pedal for hands free operation to supply and control water flow through eye wash heads
|
GI Wall bracket for mounting the shower on the walls
|
|
|
|
|
|
|
|
